Nandini Steel is a trusted 316 stainless steel sheet supplier in Mumbai, India. We supply ASTM A240 / ASME SA-240 Type 316 stainless steel sheet (UNS S31600 / AISI 316) in thicknesses from 0.3 mm to 20 mm and widths up to 2000 mm. We are ISO 9001-certified, and all our TP316 Sheets are supplied with mill test certificates

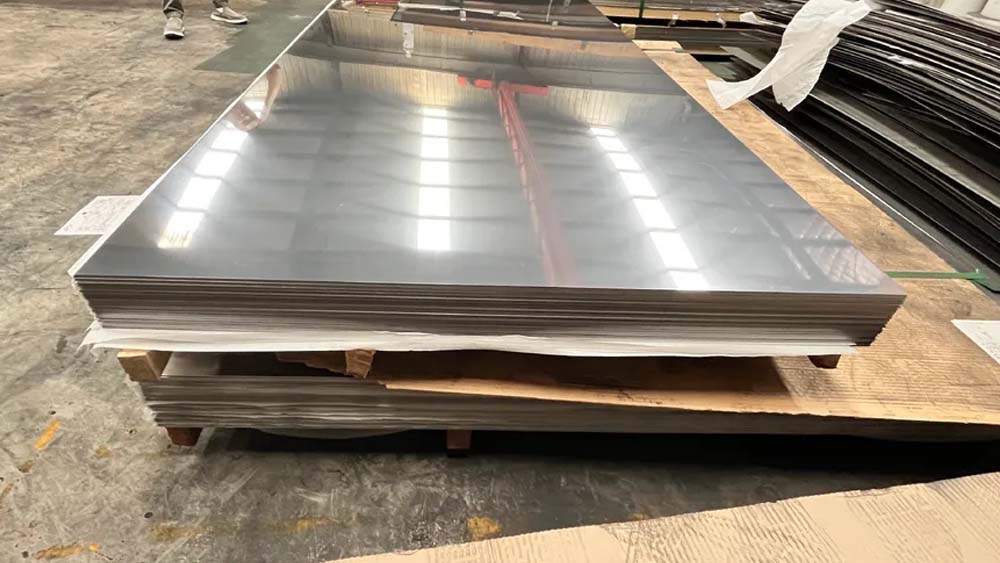

316 SS sheet is an austenitic stainless steel flat product supplied in several surface finishes: 2B mill finish, brushed (#4), mirror polished (#8), and bright annealed (BA). Sheets can be cut to the size required by the customer.
The steel contains 16.0 to 18.0% chromium, 10.0 to 14.0% nickel, and 2.00 to 3.00% molybdenum. The molybdenum content is what makes it different from 304 stainless steel, giving it better resistance to pitting and crevice corrosion in chloride environments. It has a minimum tensile strength of 515 MPa (75 ksi), a minimum yield strength of 205 MPa (30 ksi), and a minimum elongation of 40%.
We keep standard 316 stainless steel sheet sizes in stock, including 1000×2000 mm, 1219×2438 mm (4×8 ft), and 1500×3000 mm. We can also provide custom cut sheets. Available to AMS 5524 upon request for aerospace applications. Marine, chemical processing, food processing, and architectural industries use 316 stainless steel sheet because it resists chloride corrosion. For other grades, see our stainless steel sheets.
316 Stainless Steel Sheet Specifications
| Parameter | Value |
| Standard | ASTM A240 / ASME SA-240 |
| Thickness | 0.3 mm to 20 mm (28 gauge to 3/4 inch) |
| Width | 1000 mm, 1219 mm (4 ft), 1500 mm, 2000 mm |
| Length | 1000 mm to 6000 mm; custom lengths available |
| Standard Sheet Sizes | 1000×2000 mm, 1219×2438 mm (4×8 ft), 1250×2500 mm, 1500×3000 mm, 1500×6000 mm |
| Finish | 2B Mill Finish, BA (Bright Annealed), No.4 Brushed, No.8 Mirror, Hairline, Satin |
| Form | Cold Rolled, Hot Rolled |
| Edge | Mill Edge, Slit Edge |
| Hardness | 217 HB max |
316 Stainless Steel Sheet Types
SS 316 Shim Sheets
SS 316 Perforated Sheet
SS 316 Hot Rolled Sheet
SS 316 CR Sheets
Stainless Steel 316 Strip
Stainless Steel 316 Foils
Matt PVC SS 316 Sheet
2B SS 316 Sheets
316 Stainless Steel Sheet Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| SS 316 | 0.08 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 16.0 – 18.0 | 10.0 – 14.0 | 2.00 – 3.00 | 0.10 max |
316 Stainless Steel Sheet Mechanical Properties
316 stainless steel sheet (ASTM A240) has the following mechanical properties.
| Property | Tensile Strength (min) | Yield Strength (min) | Elongation (min) | Modulus of Elasticity | Brinell Hardness | Density |
| Value (Imperial) | 75 ksi | 30 ksi | 40% in 2 in. | 29,000 ksi | 217 HB max | 0.29 lb/in³ |
| Value (Metric) | 515 MPa | 205 MPa | 40% in 50 mm | 200 GPa | 217 HB max | 8.0 g/cm³ |
316 Stainless Steel Sheet Equivalent Grades
The table below shows international equivalent grades for 316 stainless steel sheet, so buyers can confirm that local specifications match the same Cr-Ni-Mo stainless steel.
| Country / Standard | Designation |
| USA (UNS) | UNS S31600 |
| Europe (EN / W.Nr) | 1.4401 / X5CrNiMo17-12-2 |
| Japan (JIS) | SUS 316 |
| China (GB/T) | 06Cr17Ni12Mo2 (current) / 0Cr17Ni12Mo2 (legacy) |
| Sweden (SS) | SS 2347 |
| France (AFNOR) | Z7CND17-11-02 |
| Aerospace (AMS) | AMS 5524 |
| Trade / Colloquial | V4A (German), Marine Grade Stainless |
316 Stainless Steel Sheet Industrial Applications
Marine & Offshore Applications
316 marine-grade stainless steel resists saltwater damage, making it ideal for boat fittings, deck hardware, and offshore platform panels.
Chemical Processing & Petrochemical
316 stainless steel sheet handles moderate sulphuric, phosphoric, and acetic acids well. It is widely used in chemical plant heat exchangers, reactors, and storage tanks.
Food Processing & Pharmaceutical
316 stainless steel sheet is hygienic and corrosion‑resistant for food and pharma. It’s used in brewing, dairy, kitchens, and cleanrooms.
Architectural & Construction
Architects use 316 stainless steel on coastal building exteriors for cladding and sculptures. The brushed No.4 finish looks uniform and resists outdoor corrosion well.
Heat Exchangers & Pressure Vessels
The 18-8 low-carbon plate fabricates shell-and-tube heat exchangers, pressure vessel heads, and condenser plates for power generation.
316 Stainless Steel Sheet Sizes
| Parameter | Details |
| Thickness Range | 0.3 mm to 20 mm (28 gauge and above) |
| Standard Widths | 1000 mm, 1219 mm, 1500 mm, 2000 mm |
| Standard Lengths | Up to 6000 mm |
| Custom Sizes | Available as per the requirement |
Standard Sheet Sizes & Dimensions
316 stainless steel sheet metal is stocked in these standard dimensions.
| Width x Length | Imperial Equivalent |
| 1000 x 2000 mm | ~3.3 x 6.6 ft |
| 1219 x 2438 mm | 4 x 8 ft |
| 1219 x 3048 mm | 4 x 10 ft |
| 1250 x 2500 mm | ~4.1 x 8.2 ft |
| 1500 x 3000 mm | ~5 x 10 ft |
| 1500 x 6000 mm | ~5 x 20 ft |
| 2000 x 6000 mm | ~6.6 x 20 ft |
316 Stainless Steel Sheet Gauge Thickness Chart
This chart shows how each gauge size corresponds to thickness in millimetres and inches, and the weight per square metre, based on a density of 7.98 g/cm³.
| Gauge | Thickness (inches) | Thickness (mm) | Approx. Weight (kg/m2) |
| 28 ga | 0.015 in. | 0.38 | 3.03 |
| 26 ga | 0.018 in. | 0.46 | 3.67 |
| 24 ga | 0.024 in. | 0.61 | 4.87 |
| 22 ga | 0.030 in. | 0.76 | 6.07 |
| 20 ga | 0.036 in. | 0.91 | 7.27 |
| 18 ga | 0.048 in. | 1.22 | 9.74 |
| 16 ga | 0.060 in. | 1.52 | 12.14 |
| 14 ga | 0.075 in. | 1.91 | 15.24 |
| 12 ga | 0.105 in. | 2.67 | 21.31 |
| 11 ga | 0.120 in. | 3.05 | 24.34 |
| 10 ga | 0.135 in. | 3.43 | 27.38 |
| 3/16 in. | 0.1875 in. | 4.76 | 38.00 |
| 1/4 in. | 0.250 in. | 6.35 | 50.67 |
| 3/8 in. | 0.375 in. | 9.53 | 76.06 |
| 1/2 in. | 0.500 in. | 12.70 | 101.35 |
| 3/4 in. | 0.750 in. | 19.05 | 152.00 |
Distributor of the Following Manufacturers
We distribute stainless steel 316 sheets from the following mills.
Aperam
Outokumpu
Nippon Steel
JFE Steel Corporation
Stainless Steel 316 Sheet Finish Types
Nandini Steel supplies 316 stainless steel sheets to major Indian cities, including Mumbai, Delhi, Chennai, Kolkata, Bengaluru, Hyderabad, Pune, Ahmedabad and so on.
| Mumbai (Maharashtra) | Delhi | Bengaluru (Karnataka) | Chennai (Tamil Nadu) |
| Kolkata (West Bengal) | Hyderabad (Telangana) | Ahmedabad (Gujarat) | Pune (Maharashtra) |
| Jaipur (Rajasthan) | Surat (Gujarat) | Chandigarh | Lucknow (Uttar Pradesh) |
| Indore (Madhya Pradesh) | Coimbatore (Tamil Nadu) | Kochi (Kerala) | Visakhapatnam (Andhra Pradesh) |
| Nagpur (Maharashtra) | Patna (Bihar) | Bhopal (Madhya Pradesh) | Vadodara (Gujarat) |
| Mysuru (Karnataka) | Thane (Maharashtra) | Rajkot (Gujarat) | Vijayawada (Andhra Pradesh) |
| Agra (Uttar Pradesh) | Nashik (Maharashtra) | Guwahati (Assam) | Kanpur (Uttar Pradesh) |
| Faridabad (Haryana) | Gurugram (Haryana) | Noida (Uttar Pradesh) | Shimla (Himachal Pradesh) |
| Raipur (Chhattisgarh) | Udaipur (Rajasthan) | Bhubaneswar (Odisha) | Dehradun (Uttarakhand) |
| Ranchi (Jharkhand) | Jamshedpur (Jharkhand) | Chandrapur (Maharashtra) | Dhanbad (Jharkhand) |
| Aligarh (Uttar Pradesh) | Aurangabad (Maharashtra) | Tiruchirappalli (Tamil Nadu) | Srinagar (Jammu & Kashmir) |
| Ludhiana (Punjab) | Warangal (Telangana) | Bikaner (Rajasthan) | Panaji (Goa) |
| Guntur |
Global Supply
| Region | Countries | |||||
| Middle East | Oman, Kuwait, Turkey, Yemen, Syria, Jordan, Cyprus, Saudi Arabia, Iran, Iraq, UAE, Qatar, Bahrain | |||||
| Africa | South Africa, Libya, Egypt, Sudan, Gabon, Nigeria, Algeria, Angola, Equatorial Guinea, The Republic Of Congo | |||||
| North America | Costa Rica, Puerto Rico, Trinidad And Tobago, Jamaica, Bahamas, USA, Canada, Mexico, Panama | |||||
| Europe | Netherlands, Belgium, Greece, Portugal, Hungary, Denmark, Russia, Norway, Germany, France, Italy, UK, Spain, Ukraine, Croatia, Slovenia, Malta, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Czech Republic | |||||
| Asia | India, Japan, Sri Lanka, Maldives, Bangladesh, Myanmar, Taiwan, Cambodia, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea | |||||
| South America | Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Argentina, Bolivia, Brazil, Chile | |||||
Frequently Asked Questions
What is the price of 316 Stainless Steel Sheet per kg?
What is a 316 Stainless Steel Sheet?
What are the standard sizes for 316 Stainless Steel Sheet?
What is the difference between 316 and 316L Stainless Steel Sheet?
What gauge thicknesses are available for 316 Stainless Steel Sheet?
Is 316 Stainless Steel Sheet suitable for marine applications?
Can 316 Stainless Steel Sheet be cut to custom sizes?
How much does a 4x8 Sheet of 316 Stainless Steel weigh?
What finishes are available for 316 Stainless Steel Sheet?
Available finishes include 2B, BA (bright annealed), No.4 brushed, No.8 mirror, hairline, and satin. 2B is common for industry; brushed and mirror finishes are popular in architectural and decorative uses.
