Round bars are solid, round-section long products used as machining and forging stock for shafts, fasteners, valve and pump parts. Nandini supplies them in stainless steel (ASTM A276/A479), alloy steel (ASTM A182 Cr-Mo), Hastelloy (ASTM B574) and Inconel (ASTM B446), in bright and black finish, mill-tested with an EN 10204 3.1 certificate.
Round bars at a glance
- Four material families: stainless steel, alloy steel, Hastelloy and Inconel. These are the same corrosion-resistant metallurgy we already stock in plate and pipe, just in the machining or forging form.
- Bar standards by family: stainless falls under ASTM A276 / A479. Cr-Mo alloy steel is ASTM A182. Hastelloy follows ASTM B574, and Inconel follows ASTM B446.
- Finishes: bright (cold-drawn), black (hot-rolled), peeled and centerless-ground.
- Traceability: every order ships with an EN 10204 3.1/3.2 mill test certificate, and the heat/cast number is stamped right on the bar.
- Sourcing: all sizes ex-stock for immediate dispatch; genuine mill material; request a quotation for live pricing.
Round bars by material family

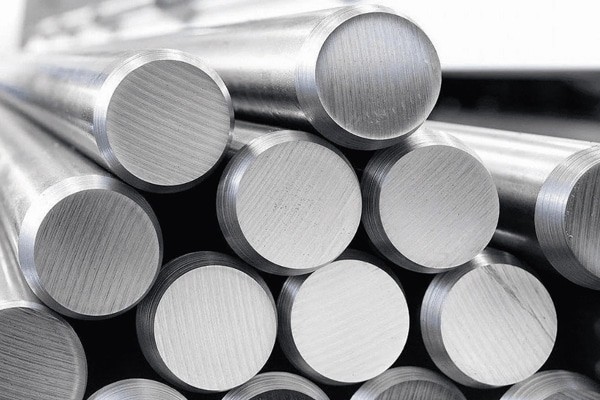

Stainless steel round bars
These austenitic grades, covered by ASTM A276 and A479, include 304, 316, 321, 347, 310 and 316Ti, and they suit general fabrication, marine work, chemical service and hygienic machined parts. Molybdenum gives 316 a pitting resistance that 304 simply doesn't have. 321 and 347, both stabilized, hold up against sensitization at elevated temperature. For the complete lineup, visit the stainless steel round bars hub.
Alloy steel round bars
Chromium-molybdenum bar in grades F5, F9, F11, F22 and P91 is produced to ASTM A182, supplied normalized and tempered so it holds its strength at elevated temperatures. That makes it a natural fit for machining valves, flanges and other pressure parts. Pick the grade according to design temperature and the governing code. For more, check the alloy steel round bars hub, or browse the full alloy steel grades range.
Hastelloy round bars
Ni-Mo-Cr bar to ASTM B574, C22, C276, C2000 and X, for reducing acids and chloride pitting/stress-corrosion-cracking duty. Hastelloy C276 (UNS N10276) resists both reducing acids and chloride-induced pitting. Browse the Hastelloy round bars hub.

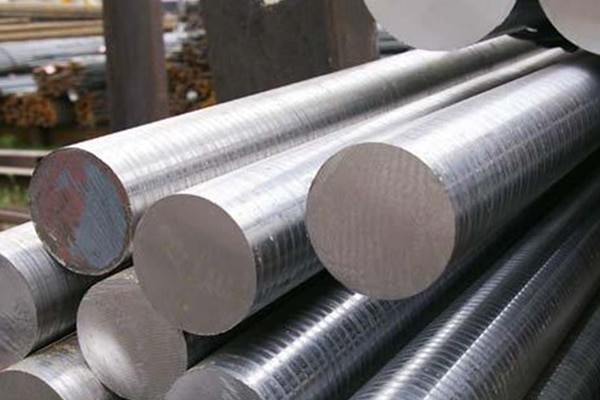

Inconel round bars
Ni-Cr-Mo bar made to ASTM B446, B166 and B637, 600, 601, 625 and 718, built for high-temperature work and for service where oxidizing and reducing acids both come into play. Inconel 625 (UNS N06625) stands up to pitting, shrugs off crevice attack, and handles both acid types without trouble. Check out the Inconel round bars hub for more.
Chemical composition: representative grades
One anchor grade per family, typical weight percent, with the balance being iron or nickel unless stated otherwise:
| Grade | Cr | Ni | Mo | Other | C (max) |
|---|---|---|---|---|---|
| 304 (S30400) | 18.0–20.0 | 8.0–10.5 | – | Fe balance | 0.08 |
| 316 (S31600) | 16.0–18.0 | 10.0–14.0 | 2.0–3.0 | Fe balance | 0.08 |
| Inconel 625 (N06625) | 20.0–23.0 | ≥58.0 | 8.0–10.0 | Nb+Ta 3.15–4.15; Fe ≤5.0 | 0.10 |
| Hastelloy C276 (N10276) | 14.5–16.5 | balance | 15.0–17.0 | W 3.0–4.5; Fe 4.0–7.0 | 0.01 |
Hastelloy C276 and Inconel 625 owe their resistance across both oxidizing and reducing media to high nickel plus molybdenum, with niobium or tungsten also in the mix. 316 gets its edge over 304 in pitting resistance from a simpler source: 2–3% molybdenum.
Mechanical properties (bar, annealed)
Room-temperature minimums in the annealed/solution-annealed condition, per the governing bar standard:
| Grade (standard) | Tensile, min (MPa) | Yield 0.2%, min (MPa) | Elongation, min (%) | Hardness, max |
|---|---|---|---|---|
| 304 (ASTM A276) | 515 | 205 | 30 | 201 HBW |
| 316 (ASTM A276) | 515 | 205 | 30 | 217 HBW |
| Inconel 625 (ASTM B446, annealed) | 827 | 414 | 30 | – |
| Hastelloy C276 (ASTM B574) | 690 | 283 | 40 | – |
Physical properties
Density drives bar weight. Austenitic stainless and the nickel alloys stay non-magnetic in the annealed condition.
| Grade | Density (g/cm³) | Melting range (°C) | Magnetic response |
|---|---|---|---|
| 304 | 8.0 | 1400–1450 | Non-magnetic (annealed) |
| 316 | 8.0 | 1370–1400 | Non-magnetic (annealed) |
| Inconel 625 | 8.44 | 1290–1350 | Non-magnetic |
| Hastelloy C276 | 8.89 | 1325–1370 | Non-magnetic |
Equivalent designations
| Grade | UNS | Werkstoff (WNr) |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 316 | S31600 | 1.4401 |
| Inconel 625 | N06625 | 2.4856 |
| Hastelloy C276 | N10276 | 2.4819 |
Sizes, finishes & standard lengths
Round bar comes in a wide range of diameters, and we offer it in four finishes, each chosen based on how the bar will actually be used.
| Finish | Process | Typical use | Tolerance class |
|---|---|---|---|
| Black bar | Hot-rolled, as-rolled surface | Forging/upset stock; heavy machining with cleanup allowance | Mill tolerance |
| Bright bar | Cold-drawn | Close-tolerance machining, fastener and stud stock | h9 / h11 |
| Peeled | Turned/peeled from black bar | Larger diameters needing a clean, concentric surface | h9 / h11 |
| Centerless-ground | Ground to finished size | Shafts, pins and valve stems machined close to size | h9 and tighter |
When working from black bar, leave machining allowance for the as-rolled surface and any decarburized layer. Cold-drawn bright or ground bar cuts that allowance down and holds diameter to h9/h11.
All diameters and lengths sit ex-stock, ready for immediate dispatch. Send a quotation request with your diameter, finish and length, and we can arrange cut-to-length or peeled-to-size.
Round bar weight: chart & formula
Bar weight is a function of diameter and material density. Use:
kg/m = 0.785 × D²(mm) × ρ(g/cm³) ÷ 1000
Ø20 mm, 316 bar, worked out: 0.785 × 400 × 8.0 ÷ 1000 ≈ 2.51 kg/m.
| Diameter | Grade (ρ) | Weight (kg/m) |
|---|---|---|
| Ø20 mm | 316 (8.0) | 2.51 |
| Ø25 mm | 304 (8.0) | 3.93 |
| Ø40 mm | 316 (8.0) | 10.05 |
| Ø50 mm | Inconel 625 (8.44) | 16.56 |
| Ø50 mm | Hastelloy C276 (8.89) | 17.45 |
Our weight calculator runs the same formula across grades and sections, and so does the how-to guide on steel weight.
Standards & specifications
The governing bar standard is set by the material family:
Stainless steel: ASTM A276 covers hot- and cold-finished bar, while ASTM A479 is the one to pick for pressure-retaining components. A479 carries the ASME-referenced requirements that A276 simply doesn't.
- Cr-Mo alloy steel: ASTM A182 (forged/rolled bar), supplied normalized and tempered.
- Hastelloy (Ni-Mo-Cr): ASTM B574.
- Inconel (Ni-Cr-Mo): ASTM B446, with B166 and B637 for related product forms.
Traceability to these standards is documented on the EN 10204 3.1 mill test certificate that comes with every order.
Testing, inspection & certification
Every bar ships with an EN 10204 3.1/3.2 mill test certificate showing heat chemistry and mechanical results checked against the ordered standard. The heat/cast number carries over from the certificate to the stamped bar, so full material traceability is built in. On request, we can also supply:
- PMI (positive material identification) to confirm grade on the physical bar.
- Intergranular corrosion testing to ASTM A262 for stainless bar, to verify freedom from sensitization.
- Ultrasonic testing (UT) for larger-diameter and forging stock.
For stainless grades held or welded between 425 and 815 °C, call for an L grade or a stabilized grade, along with solution annealing, to head off sensitization. Our testing, MTC, NDT & PMI overview lays out how each check gets reported. See solution annealing and intergranular corrosion sensitization for more detail.
Applications
- Machined components, valve and pump parts, shafts, pins, valve stems and pump internals turned from ground or bright bar.
- Fasteners and stud stock, studs, bolts and threaded bar; see our fasteners range.
- Forging and upset stock, black or peeled bar as input for forged flanges and fittings.
Frequently asked questions
What sizes do round bars come in?
How do I calculate round bar weight per meter?
What is the difference between bright bar and black bar?
Which ASTM standard applies to my round bar?
Request a quotation
Nandini Steel keeps all four families ex-stock, ready for immediate dispatch, and every order comes from genuine mill material with an EN 10204 3.1/3.2 mill test certificate. With 20+ years of history dating back to 2003, 307+ projects completed, 260+ clients served and 36+ export countries reached, the company holds ISO 9001:2015 certification as a stockist and supplier.
Send your grade, diameter, finish, length and quantity for live pricing. Call +91 22 43404600, WhatsApp +91 99202 09184, or email reachus@nandinisteel.com.
