Alloy Steel Pipe

Alloy Steel Pipes in Grades P1, P5, P9, P11, P22, P91 – High Quality and Reliable Seamless and Welded Alloy Steel Pipes for Superior Strength and Durability Buy Alloy Steel Pipes P1 | P5 | P9 | P11 | P22 | P91 from Trusted Supplier

Alloy Steel Pipes are made using steel blended with elements like chromium, molybdenum, and nickel to enhance their mechanical properties. These pipes are known for their strength, corrosion resistance, and performance under extreme conditions. Nandini Steel specialises in delivering top-grade Alloy Steel Pipes that meet international quality benchmarks. Alloy steel pipes fall under the category of refined products. We are acknowledged as a reputable manufacturer of alloy steel pipes in India and hold an ISO 9001:2015 certification, which indeed reflects our dedication to quality. Our Alloy Steel Pipes find tremendous application in sectors such as oil & gas, power generation, petrochemicals, and refineries. These are produced using advanced hot or cold drawing techniques followed by heat treatment and strict quality control procedures to ensure optimum durability and performance.

Buy Alloy Steel Pipes – Check Size Chart, Grades, and Get the Best Price from Leading Stockist

Key Features of Alloy Steel Pipes

High Strength and Durability: Designed to withstand high pressure and temperature conditions making them ideal for demanding industrial environments.
Corrosion and Oxidation Resistance: Enhanced with alloying elements to perform well in corrosive and oxidizing atmospheres.
Excellent Weldability: Compatible with both Alloy Steel Welded Pipe and Alloy Seamless Pipe configurations, offering flexibility in installation.
Heat Resistance: Perfect for high-temperature applications due to their strong thermal resistance.
Dimensional Accuracy: Built to close tolerances to ensure consistent quality and easy assembly.
Available in Multiple Forms: Such as ASTM A335 Alloy Steel Seamless Pipe, in custom thicknesses, lengths and diameters to fulfill individual client demands.
Compliance with International Standards: Compliant with ASTM, ASME, DIN, JIS and EN standards for global projects.

Applications and Grades of Alloy Steel Pipes

Our Seamless Tubes and pipes made of Alloy Steel are found in different grades like P1, P5, P9, P11, P22 and P91 under the ASTM A335. The selection of these grades is made considering tolerance to temperatures, pressure rating, and chemical compatibility. They find widespread application in heat exchanger tubes, boiler tubes, pressure vessels, power plants, chemical process units, and oil & gas exploration units. Their corrosion resistance and high strength are invaluable in engineering applications and infrastructural projects within the world markets.

Packaging, Testing & Documentation

We value quality and customer satisfaction. Our Alloy Steel Pipes are safely packaged with environment-friendly materials including wooden boxes, steel strips or plastic wraps to avoid damage during transportation. We perform thorough quality tests such as hydro testing, ultrasonic testing, eddy current testing, and visual inspection. Every order is dispatched with full documentation such as test certificates, quality assurance plans, and compliance reports. Our products are produced according to ASTM, ASME, DIN, JIS, and EN specifications, coming in various thicknesses, sizes, and lengths. We supply a large quantity of Alloy Steel Seamless Pipe and Alloy Steel Welded Pipe to suit different industrial applications.

Delivery & Call to Action

With a strong supply chain and emphasis on timely delivery, we take care that your orders arrive right on time and in impeccable shape. Be it a small lot or a bulk order, we stand ready to fulfill your needs with unparalleled quality and service. For the finest Alloy Steel Pipes, such as ASTM A335 Alloy Steel Seamless Pipe, and Alloy Steel Seamless Tubes, contact us, one of the most trusted alloy steel pipe manufacturers in India.

Other Types Alloy Steel Pipe

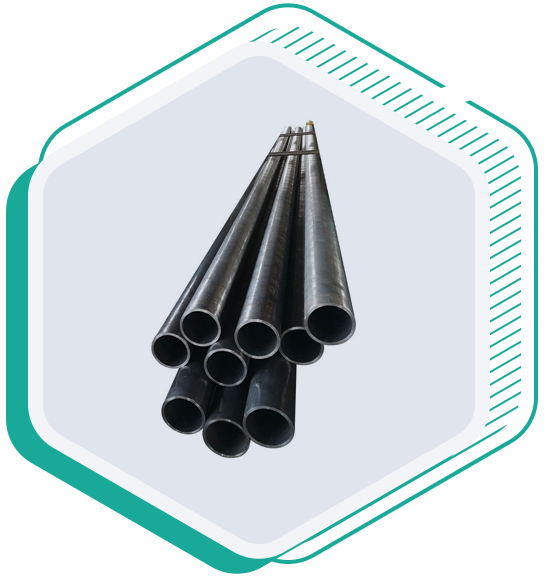

ASTM A335 P22 Alloy Steel Pipe

Alloy Steel Seamless Pipe

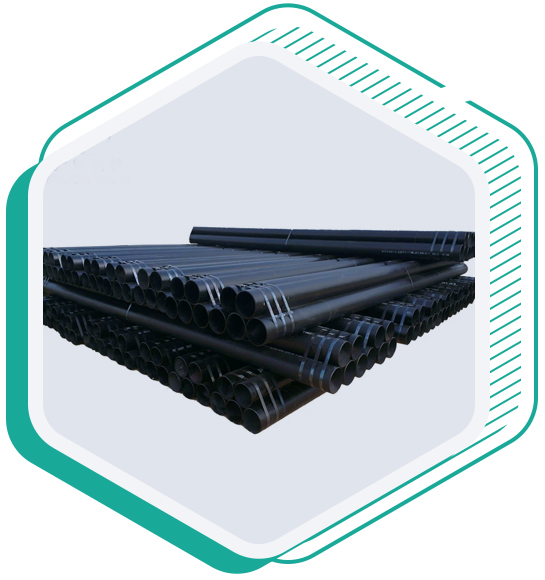

Alloy Steel Welded Pipe

ASTM A335 P5 Alloy Steel Pipe

Alloy Steel Pipe Specification

Pipe Specifications: ASTM A335 / ASME SA335
Tube Specifications: ASTM A213 / ASME SA213
Dimensions: ANSI/ASME B36.19M, ANSI/ASME B36.10M
Seamless Pipe & Tube Size: 1/2″ NB – 16″ NB
Tube Outside Diameter: 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Thickness: 0.35 mm – 50 mm
Specialized in: Large Diameter Pipe Size
Schedule: SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, SCH 80S, SCH60, SCH80, SCH120, SCH140, SCH160, SCH XXS, SCH XS
Type: Seamless Pipes, ERW Pipes, Welded Pipe
Form: Round, Square, Hydraulic, U Shape, Rectangular, Pan Cake Coils, Coiled, Hex, Honed, Etc
Length: Single Random, Double Random & Required Length
End: Plain End, Beveled End, Threaded End

Alloy Steel Pipe Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo
F1	0.15 max	0.3-0.6	0.5	0.03	0.03	4-6	0.44-0.65
F5	0.15 max	0.3-0.6	0.5-1.0	0.03	0.03	4-6	0.44-0.65
F9	0.15 max	0.3-0.6	0.5-1.0	0.03	0.03	8-10	0.9-1.1
F11	0.5-0.15	0.3-0.6	0.5-1.0	0.03	0.03	1.0-1.5	0.44-0.65
F12	0.15 max	0.3-0.6	0.5	0.03	0.03	4-6	0.44-0.65
F22	0.15 max	0.3-0.6	0.5	0.03	0.03	4-6	0.44-0.65
F91	0.15 max	0.3-0.6	0.5-1.0	0.03	0.03	8-10	0.9-1.1

Mechanical Properties of Alloy Steel Pipe

Grade	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
F1	275	485	20 %
F5	275	485	20 %
F9	380	585	20 %
F11	205	415	20 %
F12	275	485	20 %
F22	205	415	20 %
F91	380	585	20 %

Equivalent Grades For Alloy Steel Pipe

Material Group	Common Name	Type	UNS	Forging Spec.	Casting Spec. Equivalent	DIN	DIN W. No	Application
Low AS	Moly Steel	C-1/2Mo	K12822	A182-F1 cl2	A217-WC1	15M03	1.5415	Up to 470ºC* (875ºF)
	AS Chrome Moly	1.1/4Cr-1/2Mo	K11572	A182-F11 cl2	A217-WC6	13CRM044	1.7335	Up to 593ºC (1100ºF)
		2.1/4Cr-1Mo	K21590	A182-F22 cl3	A217-WC9	10CRM0910	1.7380	Up to 593ºC (1100ºF), HP steam
		5Cr-1/2Mo	K41545	A182-F5/F5a	A217-C5	12CRMO195	1.7362	High temp refinery service
		9Cr-1Mo	K90941	A182-F9	A217-C12	X 12 CrMo 9 1	1.7386	High temp erosive refinery service
		9Cr-1Mo-V		A182-F91	A217-C12A	X 10 CrMoVNb 9 1	1.4903	High pressure steam

Contact us to get a quick quote

If you require any further information about our Alloy Pipe or any other product, please do not hesitate to contact us.

Call Now

Mail Us

Alloy Steel Pipe Dimensions

OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Alloy Steel Pipe Thickness Chart

Nominal size [inches]	Outside diameter [inches]	Outside diameter [mm]	Wall thickness [inches]	Wall thickness [mm]	Weight [lb/ft]	Weight [kg/m]
1/8	0.405	10.3	0.095	2.41	0.31	0.47
1/4	0.54	13.7	0.119	3.02	0.54	0.8
1/2	0.84	21.3	0.147	3.73	1.09	1.62
3/4	1.05	26.7	0.154	3.91	1.47	2.2
1	1.315	33.4	0.179	4.55	2.17	3.24
1 1/4	1.66	42.2	0.191	4.85	3	4.47
1 1/2	1.9	48.3	0.2	5.08	3.63	5.41
2	2.375	60.3	0.218	5.54	5.02	7.48
2 1/2	2.875	73	0.276	7.01	7.66	11.41
3	3.5	88.9	0.3	7.62	10.25	15.27
3 1/2	4	101.6	0.318	8.08	12.5	18.63
4	4.5	114.3	0.337	8.56	14.98	22.32
5	5.563	141.3	0.375	9.53	20.78	30.97
6	6.625	168.3	0.432	10.97	28.57	42.56
8	8.625	219.1	0.5	12.7	43.39	64.64
10	10.75	273	0.594	15.09	64.43	96.01
12	12.75	323.8	0.688	17.48	88.63	132.08
14	14	355.6	0.75	19.05	106.13	158.1
16	16	406.4	0.844	21.44	136.61	203.53
18	18	457	0.938	23.83	170.92	254.55
20	20	508	1.031	26.19	208.87	311.17
24	24	610	1.125	30.96	296.58	442.08
