We offer 316 Stainless Steel Sheet, 316 Stainless Steel Sheet Price, 3mm 316 Stainless Steel Sheet, 316 Grade Stainless Steel Sheet, and 316 Stainless Steel Sheet Price List for various applications.

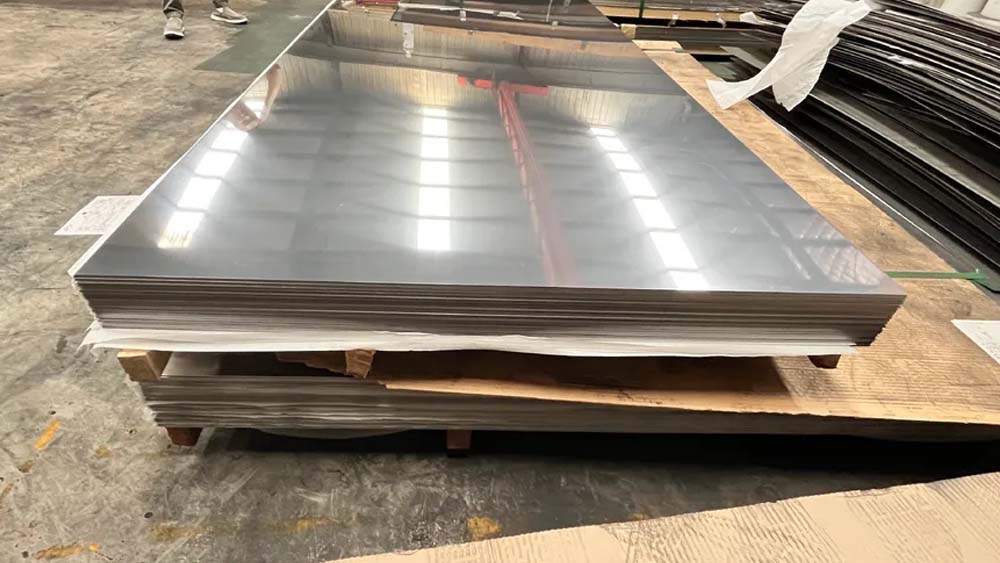

Stainless Steel 316 Sheet is a flat-rolled product which is an austenitic alloy. Nandini Steel is one of the best manufacturers globally of stainless steel products. Our 316-grade stainless steel sheet is well known for high pitting and crevice corrosion resistance in extreme industrial applications. The 316 stainless steel sheet is widely used for a variety of applications due to its excellent corrosion resistance, especially in chloride and sea environments being an austenitic chromium-nickel-molybdenum stainless steel. The sheets are manufactured by either hot or cold rolling and then annealed to improve their mechanical properties, which makes them one of the most durable and affordable products in any fabrication.It provides the ultimate combination of strength, workability and corrosion resistance making it a preferred choice in industries like chemical processing, marine application and food processing.
Nandini Steel is a trusted supplier of AISI 316 Stainless Steel Sheet, 316 Stainless Steel Sheet Thickness, and Polished 316 Stainless Steel Sheet. We offer a variety of options including 18 Gauge 316 Stainless Steel Sheet, 4mm 316 Stainless Steel Sheet, and Stainless Steel 316 Sheet Price 2mm, serving as reliable Stainless Steel 316 Sheet Suppliers.
Key Features of 316 Stainless Steel Sheet
- Better corrosion resistance than 304 stainless steel, particularly in chloride and marine atmospheres because of the presence of molybdenum (2-3% Mo in 316 and none in 304).
- Increased pitting and crevice corrosion resistance which makes the 316 stainless steel sheet suitable for saltwater and harsh chemical exposures.
- Improved thermal resistance compared to 304 stainless steel with preserved strength and toughness at high temperatures.
- Improved durability and mechanical characteristics, with a tensile strength of at least 515 MPa surpassing 304 stainless steel under extreme conditions.
- Better resistance to acids and alkalis by improved chemistry makes 316 grade stainless steel sheet more desirable for pharmaceutical, petrochemical and food processing industries.
- Increased longevity and lower maintenance expenses owing to its longer-term corrosion and wear resistance than 304 stainless steel sheet.
Compositions and Properties of Stainless Steel 316 Sheet
The aisi 316 stainless steel sheet composition includes 16-18% Chromium (Cr), 10-14% Nickel (Ni) and 2-3% Molybdenum (Mo), with carbon limited to 0.08% max. These components combine to improve its resistance to corrosion and oxidation as well as tensile strength and ductility.The presence of molybdenum especially enhances its capacity to withstand chlorides and acid environments.With a tensile strength of at least 515 MPa and yield strength of 205 MPa, plus elongation of 40% the 316 stainless steel sheet achieves outstanding durability. It preserves low hardness for machinability while exhibiting consistent performance in demanding conditions.
Applications & Industries
The 316 stainless steel sheet is widely utilized in various industries due to its superior corrosion resistance and mechanical strength. It finds extensive use in chemical processing equipment, marine and coastal buildings, pharmaceutical and food processing facility, heat exchanger and medical equipment. Its pitting and stress corrosion cracking resistance make it the material of choice for aggressive environments. From industrial usage with high masses to architectural top finishes such as 316 polished stainless steel sheets, it finds applications across the spectrum.
Packaging, Testing & Delivery
We make sure that each 316 stainless steel sheet is properly inspected for size accuracy, surface finish, and mechanical properties before shipping, following our ISO 9001 certified Quality Management System. Our products are strictly tested, including PMI testing, ultrasonic testing, and mechanical tests. We provide packaging options like wooden pallets, waterproof wrapping, and custom packaging to avoid transit damage. Fast and safe delivery is provided both domestically and internationally along with proper documentation and certifications.
Contact us today to get the best 316 stainless steel sheet price and explore our comprehensive 316 stainless steel sheet price list. Whether you need a 3mm 316 stainless steel sheet, 4mm 316 stainless steel sheet or a specific 316 stainless steel sheet gauge thickness, we can meet your project requirements. Get in touch for expert advice, competitive pricing and quick delivery of 316 stainless steel sheet 3mm and other variants.
Other Types Stainless Steel 316 Sheets
SS 316 Shim Sheets
SS 316 Perforated Sheet
SS 316 Hot Rolled Sheet
SS 316 CR Sheets
Stainless Steel 316 Strip
Stainless Steel 316 Foils
Matt PVC SS 316 Sheet
2B SS 316 Sheets
Stainless Steel 316 Sheets Specification
Sheet Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness Range: 4mm to 100mm
Length: 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Finish: 2B, 2D, BA, No.1, No.4, No.8, 8K, mirror, chequered, embossed, hairline, sand blast, brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated), etc
Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange), etc
Dimensions: ASTM, ASME, and API
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness Range: 4mm to 100mm
Length: 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Finish: 2B, 2D, BA, No.1, No.4, No.8, 8K, mirror, chequered, embossed, hairline, sand blast, brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated), etc
Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange), etc
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Stainless Steel 316 Sheet Thickness Chart
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
Weight Per Stainless Steel 316 Sheet
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | – | – | 1.44 |
| 0.20 | 3.20 | – | – | 1.60 |
| 0.22 | 3.52 | – | – | 1.76 |
| 0.24 | 3.84 | – | – | 1.92 |
| 0.27 | 4.32 | – | – | 2.16 |
| 0.28 | 4.48 | – | – | 2.24 |
| 0.32 | 5.12 | – | – | 2.56 |
| 0.38 | 6.08 | – | – | 3.04 |
| 0.44 | 7.04 | 11.00 | – | 3.52 |
| 0.50 | 8.00 | 12.50 | – | 4.00 |
| 0.56 | 8.96 | 14.00 | – | 4.48 |
| 0.63 | 10.08 | 15.75 | – | 5.04 |
| 0.75 | 12.00 | 18.75 | – | 6.00 |
| 0.88 | 14.08 | 22.00 | – | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
