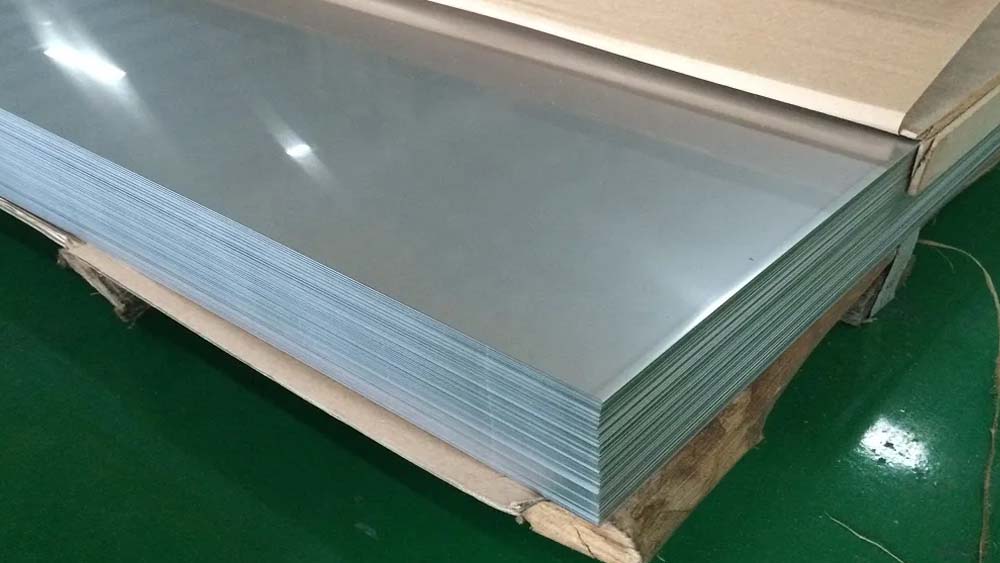

We offer a wide range of 304L Stainless Steel Sheet, 304L Stainless Steel Plate, and Stainless Steel 304L Plates, known for their durability and corrosion resistance.
Stainless Steel 304L Sheet represents the low-carbon variant of grade stainless steel 304. This difference offers remarkable resistance to corrosion and all round strength. Stainless steel sheet of this kind find great application in the production of manufacturing sheets since they can withstand harsh environments while still retaining their shape and functional properties. These sheets are processed through hot rolling, cold rolling, annealing and pickling-advanced industrial standards processes. Nandini Steel offers stainless steel solutions for various industrial needs with quality as a focus. Choosing our 304L stainless steel sheet guarantees unparalleled performance, extended and reliable performance under harsh conditions.
Nandini Steel offers high-quality SS 304 Sheet, Stainless Steel 304 Sheet, Stainless Steel 304 Sheets, SS 304 Sheet Plate, and is a trusted Stainless Steel 304L Sheets Stockist and 304L Stainless Steel Plate Manufacturers for industrial applications.
Key Features of Stainless Steel 304L Sheet
- Lower Weld Carbon Interstitials than 304: The carbon content in a 304L stainless steel sheet is ≤0.03% and thus considerably lowers the possibility of intergranular corrosion following welding. This makes the material suitable for those applications where extensive welding is required and no annealing after welding is performed.
- Superior Resistance to Corrosion: Although both 304 and 304L exhibit remarkable resistance to corrosion the 304L is particularly more resistant in corrosive environments, especially in atmospheres rich in chlorides and marine conditions.
- Higher Resistance to Sensitization: Type 304 is more susceptible to sensitization (carbide precipitation) in the heat-affected zone than 304L which has a lower carbon content and therefore provides a longer service life.
- Superior Formability: In both grades, the sheets can be easily formed but 304L stainless steel sheet has higher ductility for better performance in difficult forming and deep drawing applications.
- Comparable Mechanical Strength: Although 304L has lower tensile strength than 304 it still satisfies the mechanical strength requirements for several structural and pressure applications.
Composition and Properties of Stainless Steel 304L Sheet
304L stainless steel sheet typically contains 18% Chromium and 8% Nickel, with a carbon content of ≤0.03%, manganese ≤2.0%, silicon ≤1.0%, phosphorus ≤0.045%, sulfur ≤0.03% and iron making up the balance. This precise composition enhances its resistance to oxidation, pitting and general corrosion. The low carbon content prevents carbide precipitation, making it perfect for welding without compromising corrosion resistance. Additionally, the alloy offers good tensile strength and toughness, even at cryogenic temperatures, ensuring reliability across a wide temperature range.
Applications & Industries
The 304L stainless steel sheet is widely used in industries like food processing, pharmaceuticals, chemical processing, oil & gas, marine and construction. Its corrosion-resistant properties make it suitable for fabrication of tanks, piping, kitchen equipment, heat exchangers and architectural panelling. The material’s excellent hygienic properties and ease of cleaning are highly valued in sectors like healthcare and food production, where contamination control is crucial. From structural components to intricate machinery, 304L remains a trusted choice across diverse industries.
Packaging, Testing & Delivery Certifications
Each of our 304L stainless steel sheets is subjected to rigorous quality testing to ensure compliance with international standards such as ASTM A240. We follow stringent packaging protocols including wooden pallets, waterproof wrapping and edge protection to avoid damage during transit. Our sheets are certified under ISO 9001:2015 guaranteeing top-tier quality and customer satisfaction. We also provide material test reports and third-party inspection certificates as required.
Contact us today for competitive pricing, prompt delivery and expert technical assistance. Let us help you meet your project requirements with confidence.
Other Types Stainless Steel 304l Sheets
SS 304l Shim Sheets
SS 304l Perforated Sheet
SS 304l Hot Rolled Sheet
SS 304l CR Sheets
Stainless Steel 304l Strip
Stainless Steel 304l Foils
Matt PVC SS 304l Sheet
2B SS 304l Sheets
Stainless Steel 304l Sheets Specification
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness: 4mm – 100mm
Length: 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, No.1, No.4, No.8, 8K, mirror, chequered, embossed, hairline, sand blast, brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated), etc
Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange), etc
Dimensions: ASTM, ASME, and API
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness: 4mm – 100mm
Length: 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, No.1, No.4, No.8, 8K, mirror, chequered, embossed, hairline, sand blast, brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated), etc
Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange), etc
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18-10 | X2CrNi18-9 / X2CrNi19-11 |
Stainless Steel 304l Sheet Thickness Chart
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
Weight Per Stainless Steel 304l Sheet
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | – | – | 1.44 |
| 0.20 | 3.20 | – | – | 1.60 |
| 0.22 | 3.52 | – | – | 1.76 |
| 0.24 | 3.84 | – | – | 1.92 |
| 0.27 | 4.32 | – | – | 2.16 |
| 0.28 | 4.48 | – | – | 2.24 |
| 0.32 | 5.12 | – | – | 2.56 |
| 0.38 | 6.08 | – | – | 3.04 |
| 0.44 | 7.04 | 11.00 | – | 3.52 |
| 0.50 | 8.00 | 12.50 | – | 4.00 |
| 0.56 | 8.96 | 14.00 | – | 4.48 |
| 0.63 | 10.08 | 15.75 | – | 5.04 |
| 0.75 | 12.00 | 18.75 | – | 6.00 |
| 0.88 | 14.08 | 22.00 | – | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
