Nandini Steel is a trusted ASME SA 516 Gr 60 (NACE + HIC) Plate stockist and supplier in Mumbai, India. We supply ASME SA-516 Grade 60 NACE MR0175 and HIC-tested carbon steel pressure vessel plates in thicknesses from 5mm to 150mm. These boiler-quality plates meet ASME SA516 and ASTM A516/A516M standards and pass NACE TM0284 hydrogen-induced cracking testing for sour service reliability. All stock is supplied with EN 10204 type 3.1 or 3.2 mill test certificates.
ASTM A516 Gr 60 (NACE + HIC) Plate has manganese from 0.60% to 1.20% and carbon up to 0.21% for plates up to 12.5mm thick. Phosphorus and sulphur cannot exceed 0.035%. A516 Gr 60 plate has a minimum elongation of 21% in 8 inches and a tensile strength of 415 to 550 MPa and a yield strength of 220 MPa. This plate is impact tested and qualified down to 52 °C too.
SA-516 Gr 60 (NACE MR0175 + NACE TM0284) Plate is vacuum degassed and HIC tested with strict acceptance criteria: CLR ≤ 15%, CTR ≤ 5%, CSR ≤ 2%. Plates are available in stock from 1000mm to 4500mm wide and 3000mm to 18000mm long. Custom cutting per project specs.
Our plates are in compliance with ASTM A516, NACE MR0175, and HIC standards and suitable for critical pressure vessel fabrication. Nandini Steel is ISO 9001-certified, and supply A516 Gr 60 plates to refineries worldwide with dependable service and quality.

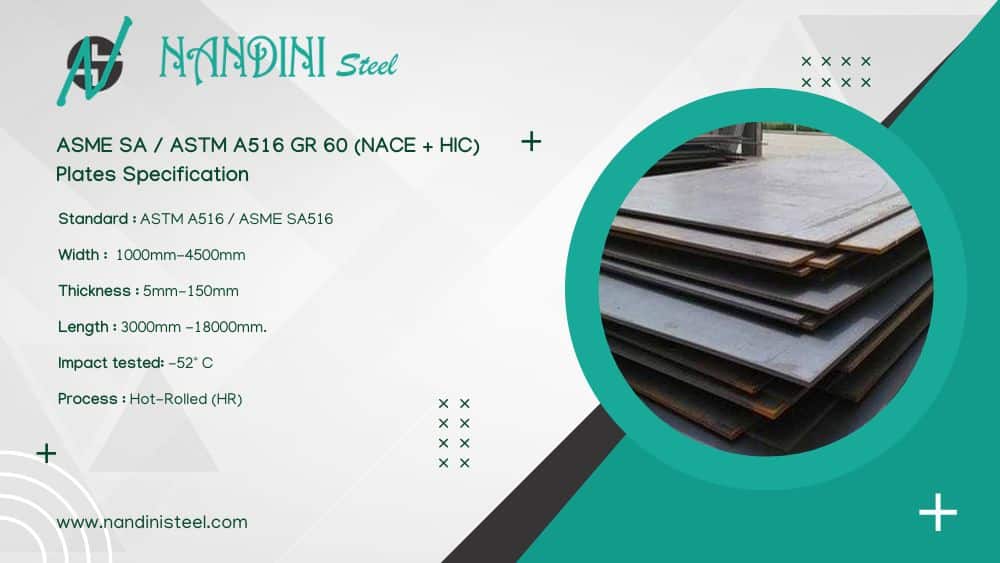

ASME SA516 Gr 60 (NACE + HIC) Plate Specifications
| Parameter | Value | |||||
| Thickness | 5mm to 150mm | |||||
| Width | 1000mm to 4500mm | |||||
| Standard | ASME SA / ASTM A516 | |||||
| Length | 3000mm to 18000mm; custom lengths available | |||||
| Surface Finish | Hot Rolled | |||||
| Supply Condition | As rolled, Normalised Rolling, Furnace Normalising, Vacuum Degassing, Simulated Post-Weld Heat Treatment, or as per client specification | |||||
| Impact Tested | Down to -52°C | |||||
| Sour Service Compliance | NACE MR0175 / ISO 15156 | |||||
| HIC Testing | Per NACE TM0284 | |||||
| Form | Plate (Hot Rolled, Normalised) | |||||
Other Types of ASME SA / ASTM A516 GR 60 (NACE + HIC) Plates
SA 516 GR.60 Dual Certified HIC Nace Tested Plates
SA 516 GR.60 NACE + HIC Boiler Quality Steel Plate
SA 516 GR.60 NACE + HIC Plate Manufacturers
ASME SA 516 GR.60 Nace MR-0103 Plates
ASME SA516 Gr 60 (NACE + HIC) Plate Chemical Compostion
The chemical composition of ASTM A516 Gr 60, which has been specifically optimised for NACE compliance and HIC resistance, is delineated in the accompanying table.
NACE/HIC plates require strict mill controls. Phosphorus is limited to 0.025%, sulfur to 0.025%. Specific carbon-manganese ratios apply, with Grade 60 manganese adjustments for thinner plates.
| Element | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Silicon (Si) |
| Composition (% by weight, max unless range shown) | 0.21 max (up to 12.5 mm) 0.23 max (>12.5 to 50 mm) 0.25 max (>50 to 100 mm) 0.27 max (>100 to 200 mm) | 0.60 to 0.90 (Heat analysis) 0.55 to 0.98 (Product analysis) 0.60 to 1.20 (Over 12.5 mm Heat analysis) 0.55 to 1.30 (Over 12.5 mm Product analysis) | 0.025 max | 0.025 max | 0.15 to 0.40 |
ASME SA516 Gr 60 (NACE + HIC) Plate Mechanical Properties
Refer to the table below for essential ASTM A516 Gr 60 mechanical properties, including NACE and HIC specifications.
Charpy V-notch impact testing is specified where required for low-temperature service. Test temperature is project-specific. Adjustments for plate-thickness elongation adhere to the supplemental standards of ASTM A20/A20M.
| Property | Tensile Strength | Yield Strength (min) | Elongation in 2 inches (min) | Elongation in 8 inches (min) |
| Value (Imperial) | 60 to 80 ksi | 32 ksi | 25% | 21% |
| Value (Metric) | 415 to 550 MPa | 220 MPa | 25% | 21% |
ASME SA516 Gr 60 Equivalent Grades
| Country / Standard | Designation |
| USA (UNS) | K02100 |
| Europe (EN / W.Nr) | EN 10028-2 P265GH / W.Nr. 1.0425 |
| UK (BS) | BS 1501-161-430A |
| Japan (JIS) | JIS G3118 SGV410 |
| China (GB) | GB 713 Q245R |
| India (IS) | IS 2002 Grade 2 |
| Germany (DIN) | DIN 17155 HII |
ASME SA516 Gr 60 (NACE + HIC) Plate Industrial Applications
Oil & Gas Equipment
In sour-gas separators, it helps stop H₂S from causing hydrogen-induced and sulphide stress cracking, keeping sour wells leak-free during service.
Boilers & Pressure Vessels
Ideal for steam drums and heat exchangers because it offers reliable high-pressure performance and excellent weldability.
Refinery Chemical Reactors
Used in refinery columns where wet gas is present, its low sulfur content prevents internal damage from hydrogen buildup over time.
Offshore & Shipbuilding
Used for offshore platform modules and ship hulls because it retains toughness at low service temperatures when supplied in normalised condition with supplementary impact testing
ASME SA516 Gr 60 (NACE + HIC) Plate Sizes
Standard Plate Dimensions Furnace Normalise
Refer to the following data for standard plate dimensions, ensuring precise material sizing and procurement efficiency.
| Dimension | Standard Range | Most Common Stock |
| Thickness | 5mm to 150mm | 6mm to 80mm |
| Width | 1000mm to 4500mm | 1500mm to 3500mm |
| Length | 3000mm to 18000mm | 6000mm to 12000mm |
Custom Sizes and Cut-to-Length
Distributor of The Following Manufacturers
We are an authorised distributor of NACE and HIC tested pressure vessel plates, sourcing premium materials from world-renowned mills:
Aperam
Outokumpu
Nippon Steel & Sumitomo Metal
Posco
Salzgitter
JFE Steel Corporation
Thyssenkrupp
Nippon Steel
ArceloreMittan industeel
ASME SA / ASTM A516 GR 60 (NACE + HIC) Plates Finish Types
As an ISO 9001-certified supplier, Nandini Steel ensures rapid delivery of A516 Gr 60 NACE/HIC plates across Mumbai, Delhi, Chennai, Bengaluru, and many other cities.
| Mumbai (Maharashtra) | Delhi | Bengaluru (Karnataka) | Chennai (Tamil Nadu) |
| Kolkata (West Bengal) | Hyderabad (Telangana) | Ahmedabad (Gujarat) | Pune (Maharashtra) |
| Jaipur (Rajasthan) | Surat (Gujarat) | Chandigarh | Lucknow (Uttar Pradesh) |
| Indore (Madhya Pradesh) | Coimbatore (Tamil Nadu) | Kochi (Kerala) | Visakhapatnam (Andhra Pradesh) |
| Nagpur (Maharashtra) | Patna (Bihar) | Bhopal (Madhya Pradesh) | Vadodara (Gujarat) |
| Mysuru (Karnataka) | Thane (Maharashtra) | Rajkot (Gujarat) | Vijayawada (Andhra Pradesh) |
| Agra (Uttar Pradesh) | Nashik (Maharashtra) | Guwahati (Assam) | Kanpur (Uttar Pradesh) |
| Faridabad (Haryana) | Gurugram (Haryana) | Noida (Uttar Pradesh) | Shimla (Himachal Pradesh) |
| Raipur (Chhattisgarh) | Udaipur (Rajasthan) | Kolkata (West Bengal) | Bhubaneswar (Odisha) |
| Dehradun (Uttarakhand) | Ranchi (Jharkhand) | Jamshedpur (Jharkhand) | Chandrapur (Maharashtra) |
| Dhanbad (Jharkhand) | Aligarh (Uttar Pradesh) | Bhubaneswar (Odisha) | Aurangabad (Maharashtra) |
| Tiruchirappalli (Tamil Nadu) | Srinagar (Jammu & Kashmir) | Ludhiana (Punjab) | Warangal (Telangana) |
| Kolkata (West Bengal) | Bikaner (Rajasthan) | Panaji (Goa) | Guntur |
Global Supply
We provide specialised sour-service plates to more than 50 countries to help with important refinery and energy infrastructure projects in the Middle East, Africa, and Europe.
| Region | Countries | |||||
| Middle East | Oman, Kuwait, Turkey, Yemen, Syria, Jordan, Cyprus, Saudi Arabia, Iran, Iraq, UAE, Qatar, Bahrain | |||||
| Africa | South Africa, Libya, Egypt, Sudan, Gabon, Nigeria, Algeria, Angola, Equatorial Guinea, The Republic Of Congo | |||||
| North America | Costa Rica, Puerto Rico, Trinidad And Tobago, Jamaica, Bahamas, Denmark, USA, Canada, Mexico, Panama | |||||
| Europe | Netherlands, Belgium, Greece, Portugal, Hungary, Russia, Norway, Germany, France, Italy, UK, Spain, Ukraine, Croatia, Slovenia, Malta, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Czech Republic | |||||
| Asia | India, Japan, Sri Lanka, Maldives, Bangladesh, Myanmar, Taiwan, Cambodia, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea | |||||
| South America | Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Argentina, Bolivia, Brazil, Chile | |||||
Frequently Asked Questions
What is ASME SA516 Gr 60 (NACE + HIC) Plate?
Normalised carbon steel plate ASME SA516 Gr 60 (NACE + HIC) is for moderate-to-low temperature pressure vessels. The design prevents the hydrogen-induced cracking and sour gas corrosion in harsh situations. For safety and durability, industries employ this material for all H2S-exposed equipment projects.
What thickness is ASME SA516 Gr 60 NACE + HIC Plate available in?
ASTM A516 Gr 60 NACE + HIC plate is available in thickness from 5mm to 150mm. Standard stock covers 6mm to 80mm thickness. Thicknesses down to 5mm are available on inquiry. All plates are supplied in normalised or as-rolled condition with full NACE + HIC test documentation.
What are the NACE and HIC testing requirements for ASME SA516 Gr 60 Plate?
What is the difference between ASME SA516 Gr 60 and A516 Gr 70 NACE + HIC Plate?
What is the Equivalent of ASME SA516 Gr 60 in European and Indian Standards?
The European equivalent of ASTM A516 Gr 60 is EN 10028-2 P265GH (W.Nr. 1.0425). The Indian standard equivalent is IS 2002 Grade 2. Other international equivalents include JIS G3118 SGV410 (Japan), GB 713 Q245R (China), and BS 1501-161-430A (United Kingdom). The UNS designation is K02100.
What industries use A516 Gr 60 NACE + HIC plates?
What is the price of ASME SA516 Gr 60 NACE + HIC Plate?
Prices in India are ₹75–₹125/kg, while USA prices range from $0.80–$3.20/kg. Costs depend on thickness, order quantity, normalised supply condition, and additional HIC/NACE testing requirements.
