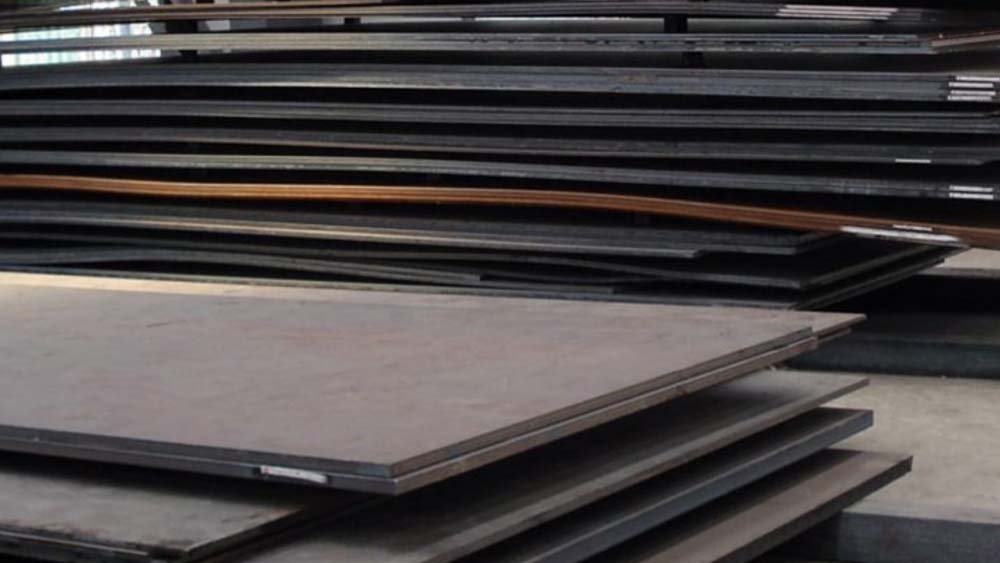

SA 516 Gr. 60/70 Plate Furnace Normalized is a superior-grade carbon steel plate used in the pressure vessel, and boiler sectors. The plates are furnace normalized in order to enhance their structural stability and mechanical performance. Nandini Steel is a leading supplier of these plates, committed to providing top-tier products with exceptional quality and service. ISO 9001:2015 Certification assures that each product conforms to international standards, offering complete satisfaction to our customers. Our SA 516 Gr 60/70 plates are produced as per ASTM, ASME, DIN, JIS and EN standards and come in various sizes, thicknesses and lengths to suit various industrial requirements.
ASME SA516 GR.70 Plate, SA516 Grade 70 Pressure Vessel Plates, SA 516 Gr.70 Plates, A516 Carbon Steel Gr.70 Plate Supplier in India, SA516 Gr70 Boiler Quality Plate, ASTM A516 Grade 70 Steel Plates Stockists in Mumbai.
Features of SA 516 Gr. 60/70 Plate Furnace Normalized
- Stronger & Tougher – Furnace Normalized plates have superior strength and toughness due to refined grain structure, unlike HIC plates, which focus on hydrogen resistance.
- Improved Impact Resistance – Provides greater ductility and impact strength, thus being more dependable in harsh conditions compared to HIC plates.
- Better Weldability – Lower residual stresses guarantee improved weldability, while HIC plates require special care to preserve crack resistance.
- Increased Fracture Toughness – Reduced risk of brittle failure, thus suitable for low-temperature use over HIC plates.
- Uniform Microstructure – Normalization guarantees uniform mechanical properties, as opposed to HIC plates, which target crack strength.
- Improved High-Temperature Performance – Retains strength and stability at high temperatures, whereas HIC plates are designed for wet H2S service.
- Cost-Efficient – Offers a balanced combination of strength and durability, hence more cost-effective for general pressure vessel applications.
Compositions and Properties of SA 516 Gr. 60/70 Plate Furnace Normalized
The composition of SA 516 Gr. 60/70 Plate Furnace Normalized is balanced to provide outstanding properties. With carbon levels between 0.26% and 0.30% and manganese levels of approximately 0.85-1.15%, these plates have superior strength, toughness and flexibility. The presence of these factors in addition to low phosphorus and sulfur content makes the material very resistant to corrosion and more weldable. The furnace normalization treatment further optimizes the plate’s microstructure to ensure high-quality performance under severe conditions.
Applications of SA 516 Gr. 60/70 Plate Furnace Normalized
Our SA 516 Gr. 60/70 plate furnace normalized is mostly applied in the construction of pressure vessels, heat exchangers, and boilers. The plates are best suited for use in industries like power plants, oil and gas, chemical processing, and shipbuilding, where high strength, toughness and resistance to pressure and heat are paramount. The material’s ability to withstand elevated temperatures makes it the preferred choice for applications in which reliability, and safety are paramount.
Packaging & Delivery
Every SA 516 Steel Plates Grade 60, 65 & 70 is tested to ensure international quality standards. We have customized packaging also that the plates are properly packaged during shipping and reach their destination in the finest condition. Our testing procedure includes mechanical testing, chemical testing, and dimensional inspection to confirm that each product is according to your specifications. With our quick and reliable delivery services, we make sure that your orders are delivered on time and in a secure manner.
Ready to enhance your production with SA 516 Gr. 60/70 Plate Furnace Normalized? Contact us for the best quality and reliable delivery. We are your trusted partner for all your steel plate needs!
Other Types of Sa 516 Gr. 60/70 Plate Furnace Normalized
ASTM A516 Boiler Quality Plates
ASTM A515 Boiler Quality Plate
SA 516 Boiler Quality Plate
SA387 Boiler Quality Plates
Sa 516 Gr. 60/70 Plate Furnace Normalized Boiler Steel Plates Specification
Standard : ASTM A516 / ASME SA516
Width : 1000mm-4500mm
Thickness : 5mm-150mm
Length : 3000mm -18000mm.
Impact tested : -52° C
Process : Hot-Rolled (HR)
| C | SI | Mn | P | S | AI | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.20 | 0.4 | 0.95/1.50 | 0.025 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.03 | 0.02 | 0.01 |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength | Yield strength | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 415-550 MPa | 250 MPa | 21 | 25 |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
Sa 516 Gr. 60/70 Plate Furnace Normalized Boiler Quality Plate Thickness Chart
| Thickness (mm) | Thickness (inches) |
| 3 mm | 0.118 in |
| 4 mm | 0.157 in |
| 5 mm | 0.197 in |
| 6 mm | 0.236 in |
| 8 mm | 0.315 in |
| 10 mm | 0.394 in |
| 12 mm | 0.472 in |
| 16 mm | 0.630 in |
| 20 mm | 0.787 in |
| 25 mm | 0.984 in |
| 30 mm | 1.181 in |
| 32 mm | 1.260 in |
| 40 mm | 1.575 in |
| 50 mm | 1.969 in |
| 60 mm | 2.362 in |
| 70 mm | 2.756 in |
| 80 mm | 3.150 in |
| 100 mm | 3.937 in |
Weight Per Sa 516 Gr. 60/70 Plate Furnace Normalized Boiler Quality Plates
| Thickness (mm) | Weight (kg/m²) | Weight (kg/ft²) |
| 3 mm | 23.55 | 4.82 |
| 4 mm | 31.40 | 6.44 |
| 5 mm | 39.25 | 8.06 |
| 6 mm | 47.10 | 9.68 |
| 8 mm | 62.80 | 12.90 |
| 10 mm | 78.50 | 16.13 |
| 12 mm | 94.20 | 19.35 |
| 16 mm | 125.60 | 25.80 |
| 20 mm | 157.00 | 32.26 |
| 25 mm | 196.25 | 40.32 |
| 30 mm | 235.50 | 48.38 |
| 40 mm | 314.00 | 64.52 |
| 50 mm | 392.50 | 80.65 |
| 60 mm | 471.00 | 96.78 |
| 70 mm | 549.50 | 112.91 |
| 80 mm | 628.00 | 129.03 |
| 100 mm | 785.00 | 161.30 |
