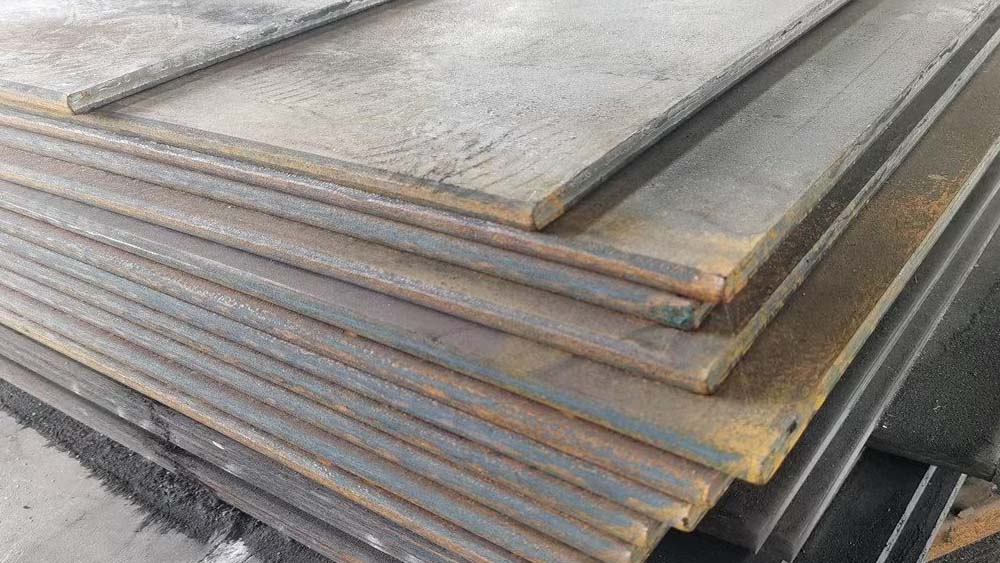

SA 516 Gr. 60/70 Plate (Dual Grade) is a high-strength carbon steel plate primarily used in the manufacture of pressure vessels and boilers. This grade of steel offers excellent weldability, notch toughness, and resistance to corrosion in harsh environments. Nandini Steel specialize in the production and supply of SA 516 Gr. 60/70 Plate (Dual Grade), ensuring that it meets ASTM, ASME, DIN, JIS and EN standards of quality. The plate is commonly used in industries like power generation, petrochemical, and oil and gas due to its ability to handle high-pressure conditions and low-temperature environments. The plate is produced from hot-rolled steel in controlled conditions to ensure its high strength and superior properties. We are ISO 9001:2015 certified, which indicates our dedication to delivering plates that meet the requirements of our customers with precision and consistency.
SA516 Grade 60/70 Hot Rolled Steel Plates, ASTM A516 Low Carbon Steel Grade 60/70 Plates Exporters, A516 Gr.60/70 HR Plate Stockholder, ASME SA516 Gr 60/70 Carbon Structural Steel Plate Supplier in Mumbai, India.
Key Features of SA 516 Gr. 60/70 (Dual Grade) Plate
- Higher Toughness: In comparison to other carbon steel plates like SA 285 Gr. C, which finds application in low-pressure applications, SA 516 Gr. 60/70 Plate (Dual Grade) is superior in applications demanding higher toughness and durability. The grade provides greater resistance to cracking, which is important in high-pressure conditions.
- Good Weldability: The steel plates are easily welded and, therefore, are suitable for pressure vessel manufacturing and other fabrication applications, as opposed to other steel grades such as SA 537, which could be more difficult to weld under the same conditions.
- Flexibility: SA 516 Gr. 60/70 (Dual Grade) Plate is applicable in a broad range of applications and provides greater design and operational flexibility than lower-grade plates, including SA 299, which are used in fewer applications.
- Improved Corrosion Resistance: This material grade offers superior corrosion resistance compared to other grades, providing better longevity and performance in industrial applications.
Compositions and Properties of SA 516 Gr. 60/70 (Dual Grade) Plate
The unique composition of our SA 516 Gr. 60/70 (Dual Grade) Plate consists of carbon, manganese, silicon, sulfur, phosphorus, and a specific amount of chromium, molybdenum, and nickel to enhance its mechanical properties. For instance, the carbon content is controlled to ensure the steel maintains high tensile strength and optimal hardness for pressure vessel service. SA 516 Gr. 60, having tensile strength ranging between 415 to 550 MPa and has a slightly larger tensile strength range and can handle tougher service conditions. The presence of alloys such as manganese (1.10% to 1.60%) and chromium (up to 0.50%) gives good resistance to oxidation and can handle high-pressure as well as low-temperature applications.
Applications of SA 516 Gr. 60/70 (Dual Grade) Plate
Our SA 516 Gr. 60/70 (Dual Grade) Plate is used in the construction of pressure vessels and boilers for the power generation industry, chemical industry, and oil and gas sectors. Its excellent welding properties make it ideal for use in industries where strong, reliable pressure vessels are needed, specifically designed for high-temperature and high-pressure environments. The plate also finds application in the production of heat exchangers, storage tanks, and other pressure and temperature fluctuating equipment. Its impact resistance and crack propagation make it suitable for use in areas where failure would have severe consequences.
Packaging & Delivery
We ensure that every SA 516 Gr. 60/70 (Dual Grade) Plate is carefully packaged to preserve its quality during transit. We perform intensive testing on every plate to confirm its mechanical properties such as tensile strength, impact toughness, and elongation. Our testing involves destructive as well as non-destructive testing. After the product passes our quality tests, it is securely packaged in wooden crates or plastic wrapping to shield it from environmental damage. We offer timely delivery, ensuring that your order arrives as expected, whether you need the plate for a small project or a large-scale operation.
Whether you are searching for SA 516 Gr. 60 Plate at competative price, Nandini Steel is your go to supplier of high-quality steel plates. Our dedication to quality and customer satisfaction makes us the best choice for all your steel plate requirements. Contact us now to order or to find out more about how SA 516 Gr. 70 Boiler Plate can fulfill your project’s needs!
Other Types of SA 516 Gr. 60/70 (Dual Grade)
ASTM A516 Boiler Quality Plates
ASTM A515 Boiler Quality Plate
SA 516 Boiler Quality Plate
SA387 Boiler Quality Plates
SA 516 Gr. 60/70 (Dual Grade) Boiler Plates Specification
Standard: ASTM A516 / ASME SA 516 Gr 60 / 65/ 70
Width: 1000mm-4500mm
Thickness: 5mm-150mm
Length: 3000mm-18000mm
Impact tested : -52° C
Process of Manufacturing : Hot-Rolled (HR)
Applications : Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service.
| Grades | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| A516 Gr 60 | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| A516 Gr 70 | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
| Grades | British Standard | European Norm | ASTM/ASME | DIN |
| A516 Gr 60 | BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| A516 Gr 70 | BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
SA 516 Gr. 60/70 (Dual Grade) Boiler Quality Plate Thickness Chart
| Thickness (mm) | Thickness (inches) |
| 3 mm | 0.118 in |
| 4 mm | 0.157 in |
| 5 mm | 0.197 in |
| 6 mm | 0.236 in |
| 8 mm | 0.315 in |
| 10 mm | 0.394 in |
| 12 mm | 0.472 in |
| 16 mm | 0.630 in |
| 20 mm | 0.787 in |
| 25 mm | 0.984 in |
| 30 mm | 1.181 in |
| 32 mm | 1.260 in |
| 40 mm | 1.575 in |
| 50 mm | 1.969 in |
| 60 mm | 2.362 in |
| 70 mm | 2.756 in |
| 80 mm | 3.150 in |
| 100 mm | 3.937 in |
Weight Per SA 516 Gr. 60/70 (Dual Grade) Boiler Quality Plates
| Thickness (mm) | Weight (kg/m²) | Weight (kg/ft²) |
| 3 mm | 23.55 | 4.82 |
| 4 mm | 31.40 | 6.44 |
| 5 mm | 39.25 | 8.06 |
| 6 mm | 47.10 | 9.68 |
| 8 mm | 62.80 | 12.90 |
| 10 mm | 78.50 | 16.13 |
| 12 mm | 94.20 | 19.35 |
| 16 mm | 125.60 | 25.80 |
| 20 mm | 157.00 | 32.26 |
| 25 mm | 196.25 | 40.32 |
| 30 mm | 235.50 | 48.38 |
| 40 mm | 314.00 | 64.52 |
| 50 mm | 392.50 | 80.65 |
| 60 mm | 471.00 | 96.78 |
| 70 mm | 549.50 | 112.91 |
| 80 mm | 628.00 | 129.03 |
| 100 mm | 785.00 | 161.30 |
