316ti Stainless Steel Plate Manufacturer

Buy Online 316Ti Stainless Steel Plate, Hot Rolled SS 316Ti HR Plates, Cold Rolled SS 316Ti CR Plates

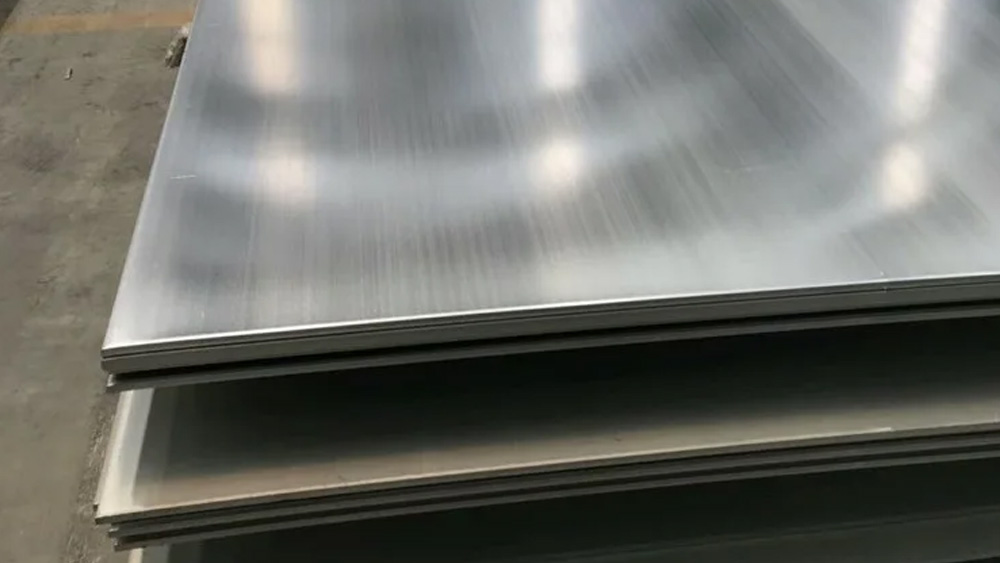

316Ti stainless steel plate is a titanium-stabilized 316 grade plate that provides increased corrosion resistance, especially under high-temperature conditions through the inhibition of the development of chromium carbides responsible for causing sensitization and intergranular corrosion. Nandini Steel excels at supplying high grade stainless steel products to ensure each plate is of top quality and performance.Selecting our 316ti stainless steel plates is choosing strength, accuracy and reliability supported by decades of experience in steel manufacturing.316ti stainless steel plates are produced using a controlled process, wherein steel is heated to a temperature where it can develop a dense and rigid structure that is stress and environment resistant.

Check SS 316Ti Plate Thickness/ Sizes/ Finishes – 2D Finish Plates, HR & CR Plates Available in All Standard Specifications

Key Features of 316ti Stainless Steel Plate

Resistance to Corrosion: When compared to 310 stainless steel plates which although possess excellent heat resistance are much more prone to pitting and crevice corrosion in aggressive environments, 316ti stainless steel plates offer much better resistance to corrosion in chloride-laden atmospheres like marine or industrial chemical environments.
Heat Resistance: Although both 316ti and 310 stainless steel possess remarkable heat resistance, 316ti is superior in environments of moderate temperature and corrosive constituents.While designed for extremely high temperature application (up to 1100°C) 316ti offers enhanced thermal stability in environments where both heat and corrosion are present.
Weldability: There is better weldability of 316ti than that of 310 stainless steel. The titanium present in the 316ti prevents the precipitation of carbides during welding and thus minimizes the chances of corrosion in the welded sections. More difficulties are encountered by 310 stainless steel when it is welded, particularly under high-temperature conditions.
Durability in Corrosive Environments: 316ti excels in chemical and marine environments, offering more effective protection against corrosion, whereas 310 stainless steel, while resistant to oxidation at high temperatures, is not as effective in chloride-rich or acidic conditions.
Cost-Effectiveness: In applications where corrosion resistance is critical but extreme high temperatures are not the main concern, 316ti stainless steel is more cost-effective than 310 stainless steel, which is specifically formulated for high-heat environments and can be more expensive.

Compositions and Properties

The composition of 316ti stainless steel plate includes 16-18% chromium, 10-14% nickel, 2-3% molybdenum, and a small addition of titanium (up to 0.7%). Titanium is added to stabilize the alloy and prevent the formation of chromium carbide during welding. This composition provides the 316ti stainless steel plate with exceptional resistance to corrosion, even in harsh environments like seawater or acidic solutions. The added molybdenum increases its resistance to pitting and crevice corrosion, making it more durable and longer-lasting than standard stainless steels. This alloy’s ability to withstand high temperatures and aggressive chemical conditions makes it the ideal material for various industrial applications.

Applications & Industries

The versatility of 316ti stainless steel plates allows them to be used in a wide range of industries and applications. These plates are often employed in the manufacturing of equipment and structures in the food and beverage, pharmaceutical, and chemical processing industries, where sanitation and corrosion resistance are paramount. Additionally, they are commonly used in marine environments, where resistance to saltwater corrosion is critical. Other sectors that benefit from 316ti stainless steel plates include oil and gas, power generation, and aerospace. Due to their resilience, these plates also serve in the production of high-performance automotive parts, heat exchangers, and pressure vessels.

Packaging, Testing & Delivery Certifications

We ensure that every 316ti stainless steel plate is thoroughly tested and inspected to meet industry standards. Our products are certified under ISO 9001:2015, ensuring consistent quality across every shipment. Each plate undergoes rigorous mechanical testing, including hardness, tensile strength, and impact testing, to guarantee that they perform in line with your project specifications. Our packaging process ensures safe delivery, and we offer a range of shipping options to suit your needs, whether you’re looking for local or international delivery.

Elevate your projects with the durability and strength of 316ti stainless steel plates from us. Whether you’re working in industrial, marine, or chemical sectors, our superior stainless steel products are designed to provide lasting performance. Contact us today to request a quote or learn more about how our 316ti stainless steel plates can meet your needs. Choose quality, choose reliability choose us.

Other Types Stainless Steel 316ti Plates

SS 316ti Chequered Plate

SS 316ti Polished Plate

SS 316ti Hot Rolled Plate

SS 316ti CR Plates

Stainless Steel 316ti Clad Plate

Stainless Steel 316ti Rolling Plate

Matt PVC SS 316ti Plate

2B SS 316ti Plates

Stainless Steel 316ti Plates Specification

Sheet Specifications: ASTM A240 / ASME SA240, EN 10088, JIS G4304
Dimensions: MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Thickness Range: 3 mm to 120 mm
Hot Rolled: 6 mm to 100 mm
Cold Rolled: 0.5 mm to 6 mm
Width: 1000 mm / 1250 mm / 1500 mm / 2000 mm etc
Length: 2000 mm / 2500 mm / 3000 mm / 6000 mm etc
Finish: 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Hardness: Half Hard, Soft, Hard, Quarter Hard, Spring Hard

Stainless Steel 316ti Plates Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Ni
SS 316Ti	0.08 max	2 max	0.75 max	0.045 max	0.03 max	16-18	10-12

Mechanical Properties of Stainless Steel 316ti Plates

Grade	Brinell HARDNESS (HBW)	Rockwell HARDNESS	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
316ti	217 max.	HRB- 95 max.	515 min.	205 min.	40 %

Equivalent Grades For Stainless Steel 316ti Plates

Grade	UNS	WNR.	JIS	EN	BS	AFNOR	GOST
316Ti	S31635	1.4571	SUS316Ti	X6CrNiMoTi17-12-2	320S31 / 321S12	Z6CNDT17-12 / Z6CNT17-12	08KH17N13M2T / 10KH17N13M2T

Contact us to get a quick quote

If you require any further information about our Stainless Steel 316ti Plate or any other product, please do not hesitate to contact us.

Call Now

Mail Us

Stainless Steel 316ti Plate Thickness Chart

Thickness	Thickness	Size Range	Surface Area per Unit weight		Approx Weight per Sheet
inches	mm		lbs/ft²	kg/m²	lbs	kg
0.015	0.381	36 x 96	0.630	3.07566	15.12	6.84936
0.015	0.381	36 x 120	0.630	3.07566	18.90	8.5617
0.0178	0.45212	36 x 96	0.756	3.690792	18.15	8.22195
0.0178	0.45212	36 x 120	0.756	3.690792	22.68	10.27404
0.0178	0.45212	48 x 96	0.756	3.690792	24.19	10.95807
0.0178	0.45212	48 x 120	0.756	3.690792	30.24	13.69872
0.0235	0.5969	30 x 96	1.008	4.921056	20.16	9.13248
0.0235	0.5969	30 x 120	1.008	4.921056	25.20	11.4156
0.0235	0.5969	36 x 96	1.008	4.921056	24.19	10.95807
0.0235	0.5969	36 x 120	1.008	4.921056	30.24	13.69872
0.0235	0.5969	36 x 144	1.008	4.921056	36.29	16.43937
0.0235	0.5969	48 x 96	1.008	4.921056	32.26	14.61378
0.0235	0.5969	48 x 120	1.008	4.921056	40.32	18.26496
0.0235	0.5969	48 x 144	1.008	4.921056	48.39	21.92067
0.0291	0.73914	30 x 96	1.260	6.15132	25.20	11.4156
0.0291	0.73914	30 x 120	1.260	6.15132	31.50	14.2695
0.0291	0.73914	36 x 96	1.260	6.15132	30.24	13.69872
0.0291	0.73914	36 x 120	1.260	6.15132	37.80	17.1234
0.0291	0.73914	36 x 144	1.260	6.15132	45.37	20.55261
0.0291	0.73914	48 x 96	1.260	6.15132	40.32	18.26496
0.0291	0.73914	48 x 120	1.260	6.15132	50.41	22.83573
0.0291	0.73914	48 x 144	1.260	6.15132	60.49	27.40197
0.0355	0.9017	30 x 96	1.512	7.381584	30.24	13.69872
0.0355	0.9017	30 x 120	1.512	7.381584	37.80	17.1234
0.0355	0.9017	36 x 96	1.512	7.381584	36.29	16.43937

Weight Per Stainless Steel 316ti Plates

Plate Thickness (mm)	Weight (kg/m)	kg/meter (width 1200mm)	kg/meter (width 1500mm)	kg/meter (width 1800mm)	kg/meter (width 2400mm)
3	23.55	28.3	35.3	42.4	56.5
4	31.4	37.7	47.1	56.5	75.4
5	39.25	47.1	58.9	70.7	94.2
6	47.1	56.5	70.7	84.8	113
8	62.8	75.4	94.2	113	150.7
10	78.5	94	118	141	188
12	94.2	113	141	170	226
16	125.6	151	188	226	301
20	157	188	236	283	377
22	172.7	207	259	311	415
25	196.25	236	294	353	471
28	219.8	264	330	396	528
32	251.2	301	377	452	603
36	282.6	339	424	509	678
40	314	377	471	565	754
45	353.25	424	530	636	848
50	392.5	471	589	707	942
55	431.75	518	648	777	1036
60	471	565	707	848	1130
65	510	612	765	918	1224
70	549.5	659	824	989	1319
75	588.75	707	883	1060	1413
80	628	754	942	1130	1507
90	706.5	848	1060	1272	1696
100	785	942	1178	1413	1884
