316l Stainless Steel Plate Manufacturer

Buy Online 316L Stainless Steel Plate, ASTM A240 316L Plates, Jindal 316L SS Plate – Most Trusted 316L Stainless Steel Plate Suppliers in Mumbai

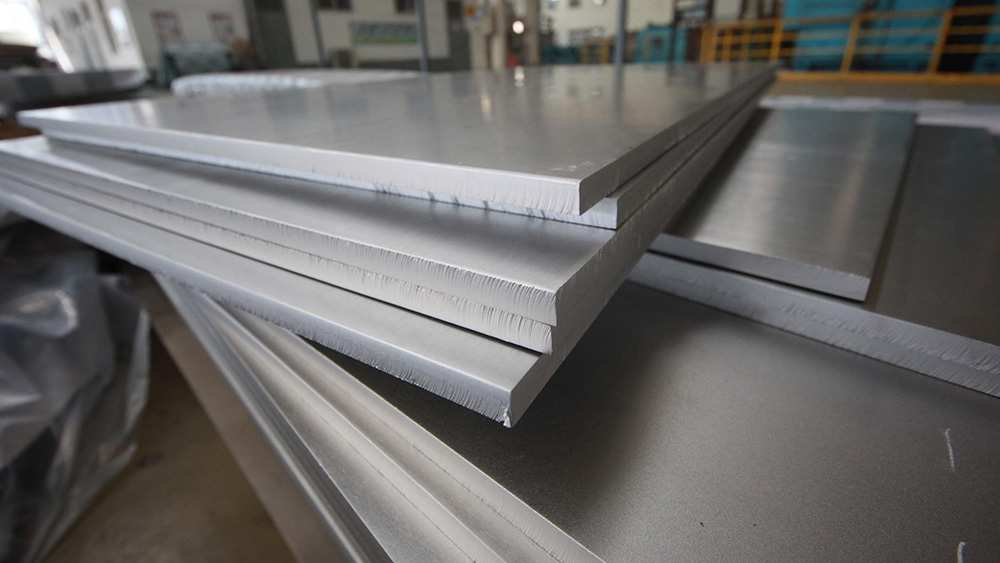

316L Stainless Steel Plate is a low-carbon variant of 316 stainless steel that is highly resistant to corrosion, particularly in harsh environments. The “L” in 316L indicates that it has a lower carbon content which reducing the risk of sensitization and improving weldability.These plates find extensive use in situations where both strength and corrosion resistance are required. Nandini Steel provides premium quality 316L Stainless Steel Plates, providing customers with a product that’s strong, dependable and efficient.Using our 316L Stainless Steel Plate assures high quality, excellent corrosion resistance and enduring performance. Regardless of whether you’re in the construction, chemical or food processing business our plates deliver top-notch service in the most extreme conditions. With accurate fabrication and emphasis placed on customer contentment we are your supplier of choice for high-quality stainless steel products. Fabricated from heat treating and cold-working process.

Check ASTM A240 316L Plate Sizes, Thickness, Price List – Stock Available in 2B Finish, No.1 Finish, and Polished Surface

Key Features of 316L Stainless Steel Plate

Superior Corrosion Resistance: Compared to SS 347, 316L Stainless Steel Plate offers significantly better resistance to corrosion, particularly in chloride-rich environments such as coastal areas or chemical processing plants. The added molybdenum content in 316L enhances its ability to resist pitting and crevice corrosion.
Better Weldability: While SS 347 is stabilized with niobium to prevent carbide precipitation, 316L Stainless Steel Plate has a lower carbon content, which makes it less susceptible to sensitization during welding. This leads to higher weldability without the necessity for post-weld heat treatment which may be necessary for SS 347 in certain applications.
Improved Resistance to Oxidation at High Temperatures:316L Stainless Steel Plate outshines SS 347 when operating at high temperatures.It offers better resistance to oxidation, hence the preference in processes where corrosion and temperature resistance are important, like in marine conditions or chemical processing.
Enhanced Resistance to Harsh Conditions: With its increased molybdenum content, the 316L Stainless Steel Plate is stronger and more resistant to exposure to aggressive chemicals and acids. SS 347, which is intergranular corrosion resistant, is not as effective in conditions involving harsh chemicals or chlorides.
Cost-Effectiveness: While SS 347 is excellent for high-temperature applications, 316L Stainless Steel Plate offers better value in applications where both high corrosion resistance and welding ease are required, especially in industries like food processing, pharmaceuticals, and marine construction.

Compositions and Properties of 316L Stainless Steel Plate

316L Stainless Steel Plate is composed of 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, along with trace elements of manganese, silicon, and phosphorus. The low carbon level (up to 0.03%) is what distinguishes it, inhibiting carbide precipitation during welding and providing excellent weldability. The high chromium and molybdenum levels are responsible for the material’s excellent resistance to oxidation, corrosion and pitting, even under severe conditions. The special composition of 316L Stainless Steel Plate makes it suitable for industries demanding superior durability and resistance to corrosive environments, including chemical processing and marine uses.

Applications & Industries

316L Stainless Steel Plate is a versatile material used in a variety of industries that require high strength and resistance to corrosion. It’s also extensively utilized in the manufacturing of heat exchangers, pressure vessels and tanks in the chemical and petrochemical sectors. The marine environment, including ship construction and offshore platforms also uses the anti-corrosive quality of 316L Stainless Steel Plate. It is used in medical machinery, food processing machinery and other industries requiring cleanliness and resistance to corrosion.Being highly durable and versatile the product plays a critical role in environments subjected to harsh conditions.

Packaging, Testing & Delivery Certifications

We take special care to pack our products so that they do not get damaged in transit. Each product is tested thoroughly to ensure quality and performance which meet strict standards set by the industry. Our products have ISO 9001:2015 certification, which certifies that every 316L Stainless Steel Plate complies with the utmost international standards for quality and safety. When you choose us you can be confident that the product you receive is trustworthy, sturdy and good to go for your applications.

Don’t compromise on quality. Contact us for premium 316L Stainless Steel Plate that meets your specific needs. Whether you need it for construction, industrial applications, or marine use, we provide products that offer exceptional performance and value. Reach out to us now for a quote.

Other Types Stainless Steel 316l Plates

SS 316l Chequered Plate

SS 316l Polished Plate

SS 316l Hot Rolled Plate

SS 316l CR Plates

Stainless Steel 316l Clad Plate

Stainless Steel 316l Rolling Plate

Matt PVC SS 316l Plate

2B SS 316l Plates

Stainless Steel 316l Plates Specification

Sheet Specifications: ASTM A240 / ASME SA240, EN 10088, JIS G4304
Dimensions: MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Thickness Range: 3 mm to 120 mm
Hot Rolled: 6 mm to 100 mm
Cold Rolled: 0.5 mm to 6 mm
Width: 1000 mm / 1250 mm / 1500 mm / 2000 mm etc
Length: 2000 mm / 2500 mm / 3000 mm / 6000 mm etc
Finish: 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
Hardness: Half Hard, Soft, Hard, Quarter Hard, Spring Hard

Stainless Steel 316l Plates Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Ni
SS 316L	0.035 max	2 max	1 max	0.045 max	0.03 max	16-18	10-14

Mechanical Properties of Stainless Steel 316l Plates

Grade	Brinell HARDNESS (HBW)	Rockwell HARDNESS	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
316l	217 max.	HRB- 95 max.	515 min.	205 min.	40 %

Equivalent Grades For Stainless Steel 316l Plates

Grade	UNS	WNR.	JIS	EN	BS	AFNOR	GOST
316L	S31603	1.4404 / 1.4435	SUS316L	X2CrNiMo17-12-2	316S11	Z2CND17-12 / Z3CND17-11-02 / Z3CND18-12-02	03KH17N14M3

Contact us to get a quick quote

If you require any further information about our Stainless Steel 316l Plate or any other product, please do not hesitate to contact us.

Call Now

Mail Us

Stainless Steel 316l Plate Thickness Chart

Thickness	Thickness	Size Range	Surface Area per Unit weight		Approx Weight per Sheet
inches	mm		lbs/ft²	kg/m²	lbs	kg
0.015	0.381	36 x 96	0.630	3.07566	15.12	6.84936
0.015	0.381	36 x 120	0.630	3.07566	18.90	8.5617
0.0178	0.45212	36 x 96	0.756	3.690792	18.15	8.22195
0.0178	0.45212	36 x 120	0.756	3.690792	22.68	10.27404
0.0178	0.45212	48 x 96	0.756	3.690792	24.19	10.95807
0.0178	0.45212	48 x 120	0.756	3.690792	30.24	13.69872
0.0235	0.5969	30 x 96	1.008	4.921056	20.16	9.13248
0.0235	0.5969	30 x 120	1.008	4.921056	25.20	11.4156
0.0235	0.5969	36 x 96	1.008	4.921056	24.19	10.95807
0.0235	0.5969	36 x 120	1.008	4.921056	30.24	13.69872
0.0235	0.5969	36 x 144	1.008	4.921056	36.29	16.43937
0.0235	0.5969	48 x 96	1.008	4.921056	32.26	14.61378
0.0235	0.5969	48 x 120	1.008	4.921056	40.32	18.26496
0.0235	0.5969	48 x 144	1.008	4.921056	48.39	21.92067
0.0291	0.73914	30 x 96	1.260	6.15132	25.20	11.4156
0.0291	0.73914	30 x 120	1.260	6.15132	31.50	14.2695
0.0291	0.73914	36 x 96	1.260	6.15132	30.24	13.69872
0.0291	0.73914	36 x 120	1.260	6.15132	37.80	17.1234
0.0291	0.73914	36 x 144	1.260	6.15132	45.37	20.55261
0.0291	0.73914	48 x 96	1.260	6.15132	40.32	18.26496
0.0291	0.73914	48 x 120	1.260	6.15132	50.41	22.83573
0.0291	0.73914	48 x 144	1.260	6.15132	60.49	27.40197
0.0355	0.9017	30 x 96	1.512	7.381584	30.24	13.69872
0.0355	0.9017	30 x 120	1.512	7.381584	37.80	17.1234
0.0355	0.9017	36 x 96	1.512	7.381584	36.29	16.43937

Weight Per Stainless Steel 316l Plates

Plate Thickness (mm)	Weight (kg/m)	kg/meter (width 1200mm)	kg/meter (width 1500mm)	kg/meter (width 1800mm)	kg/meter (width 2400mm)
3	23.55	28.3	35.3	42.4	56.5
4	31.4	37.7	47.1	56.5	75.4
5	39.25	47.1	58.9	70.7	94.2
6	47.1	56.5	70.7	84.8	113
8	62.8	75.4	94.2	113	150.7
10	78.5	94	118	141	188
12	94.2	113	141	170	226
16	125.6	151	188	226	301
20	157	188	236	283	377
22	172.7	207	259	311	415
25	196.25	236	294	353	471
28	219.8	264	330	396	528
32	251.2	301	377	452	603
36	282.6	339	424	509	678
40	314	377	471	565	754
45	353.25	424	530	636	848
50	392.5	471	589	707	942
55	431.75	518	648	777	1036
60	471	565	707	848	1130
65	510	612	765	918	1224
70	549.5	659	824	989	1319
75	588.75	707	883	1060	1413
80	628	754	942	1130	1507
90	706.5	848	1060	1272	1696
100	785	942	1178	1413	1884

Stainless Steel 316l Plate Stockist Distributor of Following Manufacturers

ThyssenKrupp Make SS 316l Plates

Aperam Make Stainless Steel 316l Plate

Outokumpu Make SS 316l Plates

Nippon Steel & Sumitomo Metal Make SS 316l Plate

Posco Make Stainless Steel 316l Plates

Jindal Make Stainless Steel 316l Plate

JFE Steel Corporation Make SS 316l Plate

Essar Make Stainless Steel 316l Plate

Stainless Steel 316l Plate Finish Types
