ASME SA387 Grade 12 Class 2 Plate Stockists in Mumbai, SA 387 GR.12 CL.2 Alloy Steel Plate, ASTM/ASME A387/SA387 GR. 12 CL 2 Plate, UNS K12789 Plate, ASTM A387 GR.12 CL.2 Steel Plates Supplier in India.
What is ASME SA387 Grade 12 Plate?
The ASME SA387 Grade 12 Plate is a chromium-molybdenum alloy steel plate that is used in high-temperature and pressure applications. Nandini Steel provides best quality ASME SA387 Grade 12 Plate, which is produced according to ASTM standards. Holding ISO 9001:2015 certification, we ensure that every product adheres to the highest quality control measures. It is well known for its superior strength, corrosion resistance, and resistance to extreme conditions, making it a popular choice in power generation, petrochemical, and heavy engineering industries. These plates are produced with high-end processes that guarantee performance and reliability even in extreme conditions. Our plates are applied in pressure vessels, heat exchangers, and boilers, where high-temperature and pressure resistance is essential.
Alloy Steel SA 387 Gr 12 CL. 2 Plates Exporter, ASME SA 387 Grade 12 CL. 2 Pressure Vessel Steel Plate, SA 387 Steel Plates Stockists in India, SA 387 GR.12 Class 2 Chromium - Molybdenum Alloy Steel Plate Supplier in Mumbai
Key Features of ASME SA387 Grade 12 Plate
- Superior Strength: Compared to ASME SA387 Grade 11, ASME SA387 Grade 12 Plate offers enhanced tensile strength and better heat resistance, making it ideal for applications that experience higher thermal stress.
- Corrosion Resistance: Improved molybdenum composition offers enhanced corrosion resistance, ensuring that ASME SA 387 GRADE 12 Class 1 is tougher than ASME SA387 Grade 5 in corrosive-prone environments.
- High Temperature Performance: It excels in maintaining strength at elevated temperatures, outperforming other grades like ASME SA387 Grade 22, which is more prone to degradation under similar conditions.
- Versatility: With its excellent formability and weldability, the Grade 12 Plate can be used in a variety of critical applications, from pressure vessels to heat exchangers, making it more versatile compared to other grades.
Compositions and Properties of ASME SA387 Grade 12 Plate
Our ASME SA387 Grade 12 Plate contains a balance of chromium and molybdenum, making it highly resistant to oxidation and corrosion at elevated temperatures. The alloy contains about 2.25% molybdenum and 1% chromium, which give the plate the capacity to withstand heat without compromising tensile strength and toughness. These components improve the steel’s capacity to resist deforming in structures that are subjected to high pressure and heat. With such unique composition, it is the perfect material for applications demanding superior resistance to thermal fatigue, corrosion, and creep.
Uses of ASME SA387 Grade 12 Plate
The superior characteristics of ASME SA387 Grade 12 Plate, make it the material of first choice in most applications. It is widely employed in the manufacture of pressure vessels, heat exchangers, and boilers where high strength, resistance to oxidation, and longevity at elevated temperatures are essential. Its corrosion resistance also makes it ideal for harsh chemical environments, such as in the petrochemical sector. The plate is also used in the production of parts for power plants and refineries, providing the durability and efficiency of equipment under harsh conditions. These attributes make SA 387 GR.12 CL.2 Plate vital in industries demanding strong performance from their materials.
Packaging, Testing, and Delivery
We understand the significance of packaging, testing, and timely delivery to maintain customer satisfaction. Our Grade 12 Plate is properly packaged to avoid any damage during transit, ensuring that the product arrives at our clients in its original condition. The plate goes through chemical testing, mechanical testing, and non-destructive testing to confirm it meets all the required standards. Our efficient delivery system guarantees that the product arrives on time, ready for use in your critical applications.
Ready to get your hands on top-quality ASME SA387 Grade 12 Plate? Contact Nandini Steel today for reliable, high-performance alloy steel products. With our expertise and dedication to quality, you can trust us to deliver exceptional plates that meet your specific needs. Reach out now to place your order and experience the difference!
Other Types ASME Sa387 Grade 12 Plate
ASME Sa387 Grade 12 Chequered Plate
ASME Sa387 Grade 12 Polished Plate
ASME Sa387 Grade 12 Hot Rolled Plate
ASME Sa387 Grade 12 CR Plates
ASME Sa387 Grade 12 Clad Plate
ASME Sa387 Grade 12 Rolling Plate
ASME Sa387 Grade 12 2mm Plate
ASME Sa387 Grade 12 2B Plates

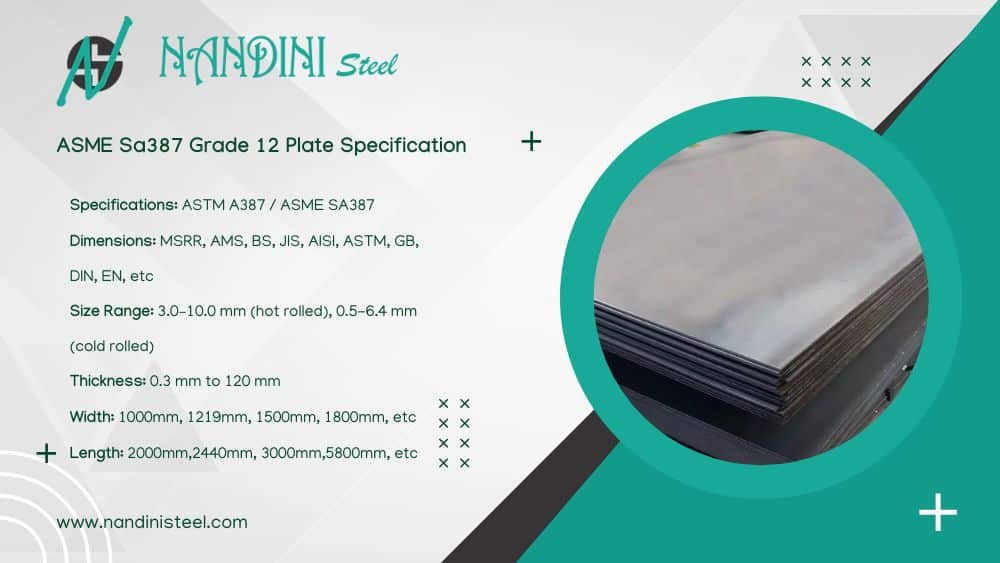

ASME Sa387 Grade 12 Plate Specification
Specifications: ASTM A387 / ASME SA387
Dimensions: MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc
Size Range: 3.0–10.0 mm (hot rolled), 0.5-6.4 mm (cold rolled)
Thickness: 0.3 mm to 120 mm
Width: 1000mm, 1219mm, 1500mm, 1800mm, etc
Length: 2000mm,2440mm, 3000mm,5800mm, etc
| C | Mn | P | S | Si | Cr | Mo |
| 0.04 – 0.17 | 0.35 – 0.73 | 0.035 | 0.035 | 0.13 – 0.45 | 0.74 – 1.21 | 0.4 – 0.65 |
| A387 / SA387 Grade 12 | Class 1 | Class 2 |
| Tensile Strength (ksi) | 50-80 | 65-85 |
| Tensile Strength (MPa) | 380-550 | 450-585 |
| Yield Strength (ksi) | 33 | 40 |
| Yield Strength (MPa) | 230 | 275 |
| Elongation in 50mm (%) | 18 | 19 |
| Elongation in 50mm (%) | 22 | 22 |
| COUNTRY | RUSSIA | EUROPEAN | USA | ENGLAND | GERMANY | FRANCE |
| STANDARDS | GOST | EN 10028 | ASME | BS | DIN | AFNOR 36206 |
| Grade 12 | 12KHM | 13CrMo4-5 | SA387 | 620B | 13CrMo44 | 15CD2.05 |
ASME Sa387 Grade 12 Plate Thickness Chart
| Thickness | Width | Length |
|---|---|---|
| 8 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 60 | 1800 | 3400 |
| 6 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 4 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 12 | 2000 | 6000 |
| 10 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
Weight Per ASME Sa387 Grade 12 Plate
| Steel Plate Size (ft) | Pattern Height, in (mm) | Flat Plate Weight/Sheet (lbs) | Thickness (in. or AWG) | Checker Plate Weight/Sheet (lbs) |
| 4×8 | – | 33.06 | 22 gauge | – |
| – | 20.78 | 26 gauge | – | |
| – | 16.47 | 28 gauge | – | |
| – | 41.82 | 20 gauge | – | |
| 0.0197 (0.5) | 66.39 | 16 gauge | 79.19 | |
| – | 52.67 | 18 gauge | – | |
| 0.0315 (0.8) | 105.59 | 12 gauge | 125.11 | |
| 0.0256 (0.65) | 83.77 | 14 gauge | 97.14 | |
| 0.055 (1.40) | 163.35 | 1/8 | 192.15 | |
| 0.0256 (0.65) | 81.68 | 1/16 | 95.05 | |
| 0.060 (1.52) | 408.38 | 5/16 | 441.15 | |
| 326.71 | 1/4 | 359.47 | ||
| 245.03 | 3/16 | 277.80 | ||
| 571.74 | 7/16 | 604.50 | ||
| 490.06 | 3/8 | 522.83 | ||
| 735.09 | 9/16 | 767.86 | ||
| 653.41 | 1/2 | 686.18 | ||
| 898.44 | 11/16 | 931.21 | ||
| 816.77 | 5/8 | 849.53 | ||
| 1061.80 | 13/16 | 1094.56 | ||
| 980.12 | 3/4 | 1012.89 | ||
| 1306.83 | 1 | 1339.59 | ||
| 1143.47 | 7/8 | 1176.24 | ||
| 4×4 | – | 8.23 | 28 gauge | – |
| – | 10.39 | 26 gauge | – | |
| – | 16.53 | 22 gauge | – | |
| – | 20.91 | 20 gauge | – | |
| – | 26.33 | 18 gauge | – | |
| 0.0197 (0.5) | 33.19 | 16 gauge | 39.59 | |
| 0.0256 (0.65) | 41.88 | 14 gauge | 48.57 | |
| 0.0315 (0.8) | 52.80 | 12 gauge | 62.56 | |
| 0.0256 (0.65) | 40.84 | 1/16 | 47.53 | |
| 0.055 (1.40) | 81.68 | 1/8 | 96.08 | |
| 0.060 (1.52) | 122.51 | 3/16 | 138.90 | |
| 0.060 (1.52) | 163.35 | 1/4 | 179.74 | |
| 0.060 (1.52) | 245.03 | 3/8 | 261.41 | |
| 0.060 (1.52) | 326.71 | 1/2 | 343.09 | |
| 0.060 (1.52) | 490.06 | 3/4 | 506.44 | |
| 0.060 (1.52) | 653.41 | 1 | 669.80 | |
| 2×4 | – | 10.45 | 20 gauge | – |
| – | 5.19 | 26 gauge | – | |
| – | 4.12 | 28 gauge | – | |
| – | 8.27 | 22 gauge | – | |
| 0.0197 (0.5) | 16.60 | 16 gauge | 19.80 | |
| – | 13.17 | 18 gauge | – | |
| 0.0315 (0.8) | 26.40 | 12 gauge | 31.28 | |
| 0.0256 (0.65) | 20.94 | 14 gauge | 24.29 | |
| 0.055 (1.40) | 40.84 | 1/8 | 48.04 | |
| 0.0256 (0.65) | 20.42 | 1/16 | 23.76 | |
| 0.060 (1.52) | 81.68 | 1/4 | 89.87 | |
| 0.060 (1.52) | 61.26 | 3/16 | 69.45 | |
| 0.060 (1.52) | 163.35 | 1/2 | 171.55 | |
| 0.060 (1.52) | 122.51 | 3/8 | 130.71 | |
| 0.060 (1.52) | 326.71 | 1 | 334.90 | |
| 0.060 (1.52) | 245.03 | 3/4 | 253.22 | |
| 4×10 | – | 52.27 | 20 gauge | – |
| – | 25.97 | 26 gauge | – | |
| – | 20.58 | 28 gauge | – | |
| – | 65.83 | 18 gauge | – | |
| – | 41.33 | 22 gauge | – | |
| 0.0197 (0.5) | 82.98 | 16 gauge | 98.98 | |
| 0.0315 (0.8) | 131.99 | 12 gauge | 156.39 | |
| 0.055 (1.40) | 204.19 | 1/8 | 240.19 | |
| 0.0256 (0.65) | 104.71 | 14 gauge | 121.43 | |
| 0.060 (1.52) | 408.38 | 1/4 | 449.34 | |
| 0.0256 (0.65) | 102.10 | 1/16 | 118.82 | |
| 0.060 (1.52) | 816.77 | 1/2 | 857.73 | |
| 0.060 (1.52) | 306.29 | 3/16 | 347.25 | |
| 0.060 (1.52) | 1225.15 | 3/4 | 1266.11 | |
| 0.060 (1.52) | 612.57 | 3/8 | 653.53 | |
| 0.060 (1.52) | 1633.53 | 1 | 1674.49 | |
| 5×10 | – | 65.34 | 20 gauge | – |
| – | 32.47 | 26 gauge | – | |
| – | 25.73 | 28 gauge | – | |
| – | 51.66 | 22 gauge | – | |
| 0.0197 (0.5) | 103.73 | 16 gauge | 123.73 | |
| – | 82.29 | 18 gauge | – | |
| 0.0315 (0.8) | 164.99 | 12 gauge | 195.49 | |
| 0.0256 (0.65) | 130.89 | 14 gauge | 151.79 | |
| 0.055 (1.40) | 255.24 | 1/8 | 300.24 | |
| 0.0256 (0.65) | 127.62 | 1/16 | 148.52 | |
| 0.060 (1.52) | 510.48 | 1/4 | 561.68 | |
| 0.060 (1.52) | 382.86 | 3/16 | 434.06 | |
| 0.060 (1.52) | 1020.96 | 1/2 | 1072.16 | |
| 0.060 (1.52) | 765.72 | 3/8 | 816.92 | |
| 0.060 (1.52) | 2041.91 | 1 | 2093.11 | |
| 0.060 (1.52) | 1531.44 | 3/4 | 1582.64 |
