Premium Alloy 28 Sheet & Plate Supplier in Mumbai, India. Buy Alloy 28 Plates, ASTM B709 Alloy 28 Sheets, N08028 Alloy Plate, Werkstoff Nr. 1.4563 Alloy Sheets from Trusted Manufacturer.
Corrosion-Resistant Alloy 28 Sheet Exporter, Alloy 28 Plate Stockist for Chemical and Petrochemical Industries, Alloy 28 Shim Sheets Distributor in India
Key Features of Alloy 28 Plate
- Corrosion Resistance: Alloy 28 provides high resistance to corrosion, particularly under highly acidic and saline conditions, over SA387 Grade 22, which fits less corrosive environments
- Temperature Tolerance: Alloy 28 has better performance at high and low temperatures, which means it will have its integrity intact even in the worst conditions
- Molybdenum Content: With a higher molybdenum content Alloy 28 has outstanding pitting and crevice corrosion resistance and is well suited for use in chemical processing industries where such an attack is prevalent.
- Stronger Structural Integrity: The unique alloy composition of Alloy 28 Plate results in greater structural strength and resilience compared to SA387 Grade 22 making it a more reliable material for applications demanding high-performance durability.
Compositions and Properties of Alloy 28 Plate
Alloy 28 Plate stands out because of its unique chemical composition, particularly its nickel (Nickel content around 28%), chromium (around 20%)and molybdenum (around 3%) levels.These elements work synergistically to give Alloy 28 its exceptional resistance to corrosion, especially in highly acidic and chloride rich environments.The high molybdenum content gives the alloy enhanced resistance to pitting and crevice corrosion, while chromium improves its resistance to oxidation. Nickel, one of the major constituents, is responsible for the resistance of the alloy against reducing acids. The blend of elements not only increases its toughness and strength but also renders it compatible for employment in high-pressure applications and in high-thermal stress environments. The excellent composition of Alloy 28 Plate makes it resistant to extreme environments and increases the operational life of equipment and minimizes maintenance requirements.
Packaging, Testing & Delivery
We understand that packaging and delivery are just as important as the quality of the product itself. Each Alloy 28 Plate is carefully packaged to ensure it arrives in perfect condition, ready for use in your application. Our testing process includes various mechanical and chemical tests to ensure the plates meet industry standards and specifications. From tensile strength to corrosion resistance, every plate undergoes a thorough inspection before it is shipped. As a certified company, we adhere to strict quality control measuresand our products are certified to ISO 9001:2015 standards, ensuring reliability, consistencyand trust in every product we deliver.
Looking for a reliable and high-performance material for your critical applications? Alloy 28 Plate from us is your ideal choice for superior corrosion resistance and structural integrity. Contact us today for custom sizes, competitive pricing and timely delivery.
Other Types of Alloy 28 Plates

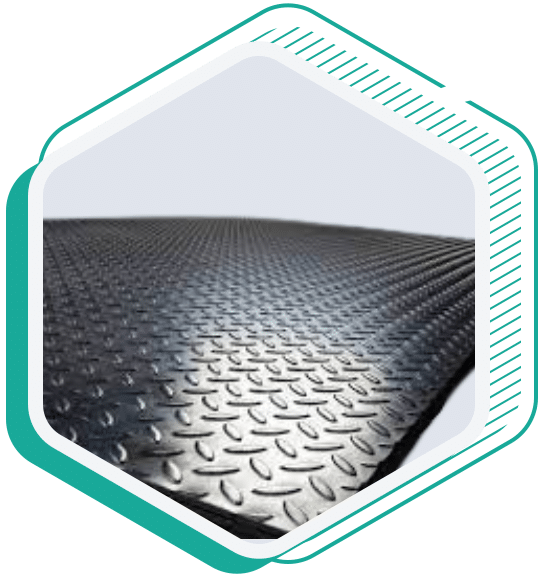

Alloy 28 Chequered Plate

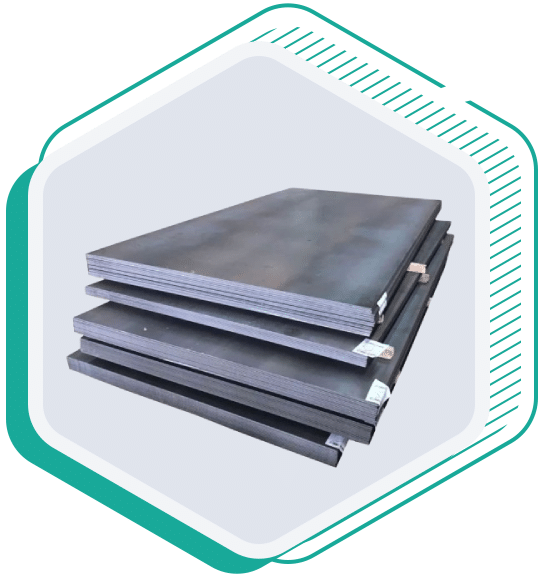

Alloy 28 Polished Plate

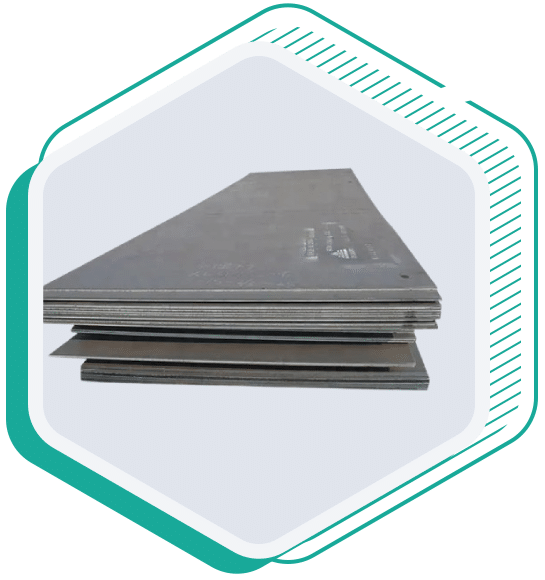

Alloy 28 Hot Rolled Plate

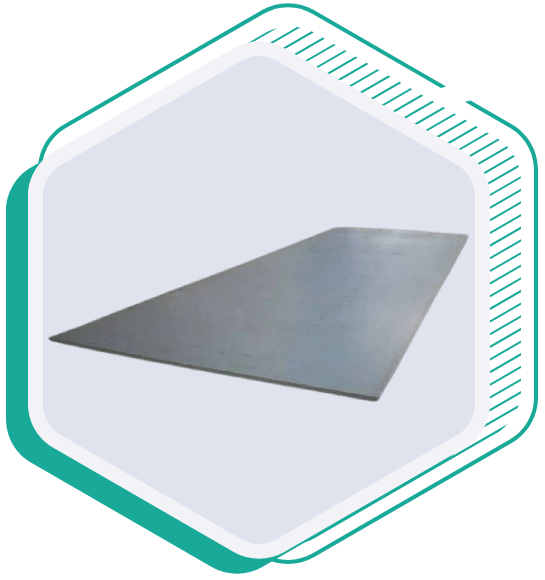

Alloy 28 CR Plates

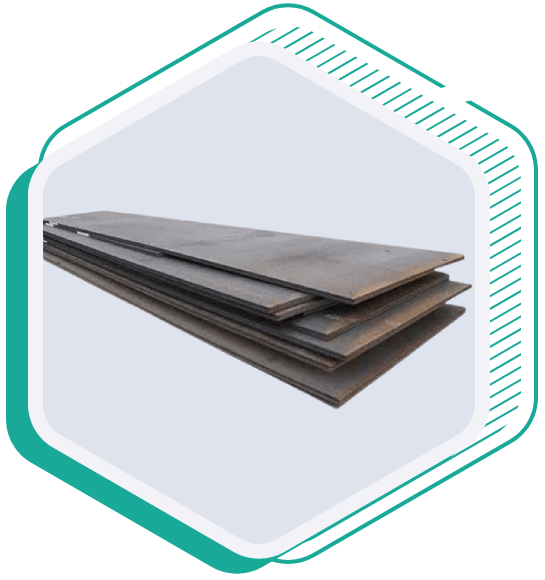

Alloy 28 Clad Plate

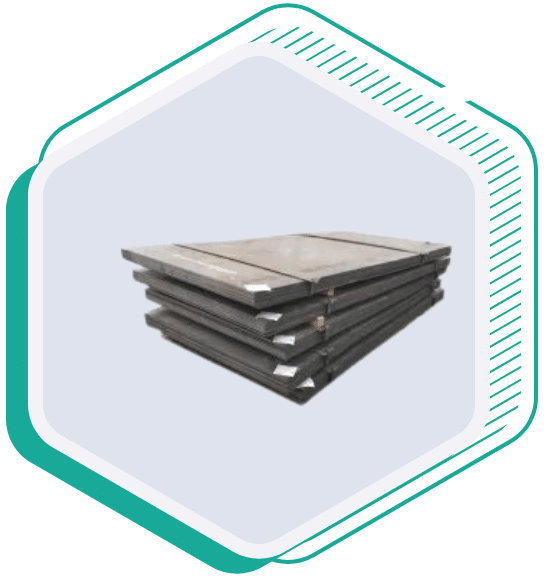

Alloy 28 Rolling Plate

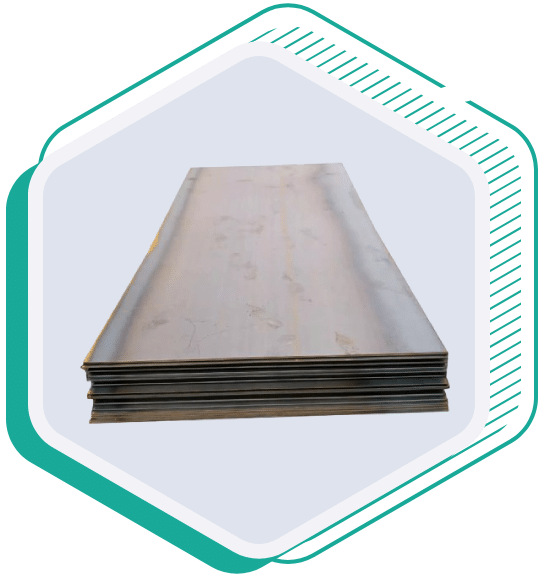

Matt PVC Alloy 28 Plate
2B Alloy 28 Plates
Alloy 28 Plates Specification
Specification: ASTM B709
Thickness :Ranging from 0.3mm to 20mm
Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Hardness :As per ASME A & NACE MR 175
Width :1000mm / 1219mm /1250mm / 1500mm / 2000mm
Finish: Hot rolled plate (HR), Cold rolled sheet (CR)
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo |
| Alloy 28 | 0.02 max | 2 max | 0.70 max | 0.03 max | 0.60 – 1.40 | 30 – 32 | 26 – 28 | 22 min | 3 – 4 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1443 °C (2430 °F) | MPa -650 | MPa – 250 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | EN |
| Alloy 28 | 1.4563 | N08028 | X1NiCrMoCuN31-27-4 |
Alloy 28 Plate Thickness Chart
| Metric Thickness (mm) | Imperial Thickness (inches) | Typical Tolerance |
| 3.0 mm | 0.118 in | ±0.25 mm |
| 4.0 mm | 0.157 in | ±0.25 mm |
| 5.0 mm | 0.197 in | ±0.25 mm |
| 6.0 mm | 0.236 in | ±0.30 mm |
| 8.0 mm | 0.315 in | ±0.30 mm |
| 10.0 mm | 0.394 in | ±0.30 mm |
| 12.0 mm | 0.472 in | ±0.35 mm |
| 16.0 mm | 0.630 in | ±0.40 mm |
| 20.0 mm | 0.787 in | ±0.50 mm |
| 25.0 mm | 0.984 in | ±0.60 mm |
| 30.0 mm | 1.181 in | ±0.70 mm |
| 40.0 mm | 1.575 in | ±0.80 mm |
| 50.0 mm | 1.969 in | ±1.00 mm |
Weight Per Alloy 28 Plate
| Thickness (mm) | Plate Size (m x m) | Weight per Plate (kg) |
| 3 mm | 1m x 2m | 48.6 kg |
| 4 mm | 1m x 2m | 64.8 kg |
| 5 mm | 1m x 2m | 81 kg |
| 6 mm | 1m x 2m | 97.2 kg |
| 8 mm | 1m x 2m | 129.6 kg |
| 10 mm | 1m x 2m | 162 kg |
| 12 mm | 1m x 2m | 194.4 kg |
| 16 mm | 1m x 2m | 259.2 kg |
| 20 mm | 1m x 2m | 324 kg |
| 25 mm | 1m x 2m | 405 kg |
