Hastelloy Forged Fittings

Provide Hastelloy Forged Elbow, Tee and Coupling in Various Sizes at Reasonable Price, Most Trusted Custom Hastelloy Threaded Forged Fittings Manufacturer in India.

A hastelloy forged fitting is a type of high-performance pipe fitting that is specifically designed for extreme conditions, particularly in corrosive and high-temperature environments. The constructed fittings are shaped by a forging process that does shape the metal at high pressure; thus, it contributes to greater strength and durability. Nandini Steel is a leading manufacturer and supplier of a broad spectrum of Hastelloy forged fittings precisely designed to meet varying industrial needs. We hold ISO 9001:2015 certification, reflecting our commitment to consistent quality and superior manufacturing processes. Such fittings find wide application in industries for secure joining or redirecting of piping systems dealing with aggressive chemicals and high-pressure applications. Crafted from top-grade Hastelloy alloys, our forged fittings include elbows, tees, couplings, unions, and caps for outstanding corrosion resistance pitting and stress cracking.

Top Hastelloy Forged Fittings Manufacturer in Mumbai – High-Strength Fittings in Grades C22, C276, B2 for High-Temperature & Corrosive Applications at Best Prices

Key Features of Hastelloy Forged Fitting

Exceptional Corrosion Resistance: Ideal for aggressive chemical environments, especially where chlorides, acids, and oxidizing agents are present.
High Strength and Toughness: Forged make guarantees tough operation under high pressure and temperature.
Positive Sealing: With the aim to ensure leak-tight connections of fluid as well as gas lines.
Heat Stability: Does not lose its mechanical strength under intense heat as well as inert chemical atmospheres.
Fine Alloy Content: Containing molybdenum, chromium, and iron, ensuring durability against cracking as well as oxidation.

Applications of Hastelloy Forged Fitting

Hastelloy forged fitting is an essential component that requires durability against demanding operational conditions. Chemical processing, marine, oil & gas refinery, power, and pulp & paper industries typically make use of such fittings. Their high temperature and acid resistance makes them very useful in the handling of corrosive gases, slurries, and fluids. They find use in power plants and chemical plants to turn the direction of flow or safely connect pipes. For less demanding tasks such as fire protection, water distribution or cooling systems, ANSI B16.11 Hastelloy Threaded Forged Fittings offer a reliable and cost-effective solution.

Packaging, Testing & Delivery Standards

Being one of the best Hastelloy Screwed Fittings Suppliers we ensures that fittings are stringently tested for durability, strength, and resistance by techniques such as hydro testing, non-destructive testing (NDT), and visual inspection. All products adhere to international manufacturing standards, such as ASTM, ASME, DIN, JIS and EN. Each fitting is carefully packed in export-quality packaging to ensure that it will not be damaged during shipping. We guarantee on-time delivery with complete documentation, and traceability to ensure our customers of consistent quality. Our testing procedures and packaging techniques are designed to meet our international customers.

Whether it’s a standard fitting or a customized solution, we are ready to fulfill your order with excellence and speed. Reach out to us today and experience why industries worldwide trust Nandini Steel for ASTM B564 Hastelloy Alloy Forged Fittings.

Get in touch with us today for competitive pricing and quick delivery, so we can help you build your project with unparalleled durability!

Other Types Hastelloy Forged Fitting

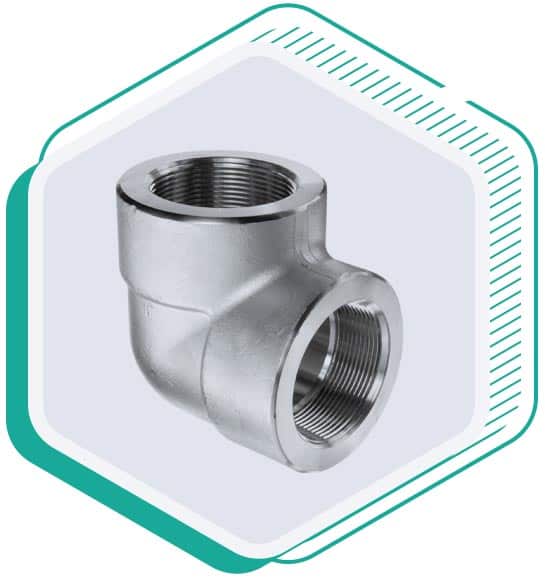

Hastelloy Forged Elbow

Hastelloy Forged Tee

Hastelloy Forged Cross

Hastelloy Street elbow

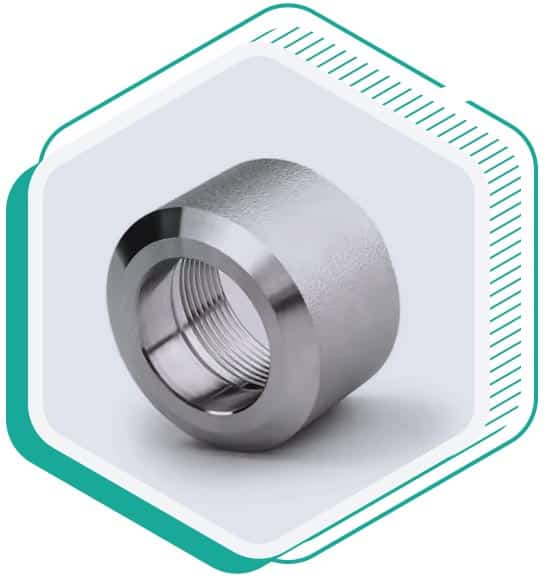

Hastelloy Half Coupling

Hastelloy Full Coupling

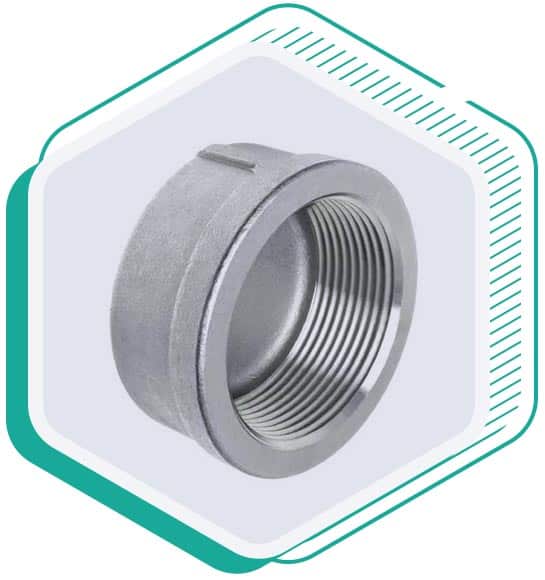

Hastelloy Pipe Cap

Hastelloy Union

Hastelloy Plug

Hastelloy Bushing

Hastelloy Barrel Nipples

Hastelloy Welding Boss

Hastelloy Forged Fittings Specification

Specifications: ASTM B564, ASME SB564
Dimensions: ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size: 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class: 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type: Socketweld Fittings, Screwed-Threaded Fittings
Manufacturing process: Forge, Cast, Push, Press, etc.
Specialized manufacturer of: 90 Deg Forged Elbows, 45 Deg Forged Elbows, Tees, Crosses, Couplings, End Cap, Union, Bushing, Plug, Barrel Nipple
Grades: C22, C276, C2000, B2, B3 etc.
Material Test Certificates (MTC): EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc

Hastelloy Forged Fittings Chemical Composition

Alloy	Ni	Cr	Mo	Fe	W	Cu	Other Elements
Hastelloy C276	Ni: 56-63%	Cr: 14-17%	Mo: 15-17%	Fe: 4-7%	W: 3-4%	–	Co: 2%, Mn: 1%, Si: 0.08%, C: 0.01%
Hastelloy C22	Ni: 56-63%	Cr: 20-22%	Mo: 12-14%	Fe: 3%	W: 2-3%	–	Co: 1%, Mn: 1%, Si: 0.08%, C: 0.01%
Hastelloy B2	Ni: 60%	Cr: 2.5%	Mo: 29-30%	Fe: 2%	W: 0%	–	C: 0.015%, Si: 0.2%, Mn: 0.3%
Hastelloy C2000	Ni: 58-63%	Cr: 22-26%	Mo: 14-16%	Fe: 4%	W: 2%	Cu: 2-3%	Co: 1%, Mn: 1%, Si: 0.5%, C: 0.01%

Mechanical Properties of Hastelloy Forged Fittings

Alloy	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HB)
Hastelloy C276	760-1100	205-345	30-50%	220-250
Hastelloy C22	670-1030	275-414	30-50%	180-210
Hastelloy B2	520-760	220-290	50-60%	180-230
Hastelloy C2000	760-1100	240-350	40-55%	220-250

Equivalent Grades For Hastelloy Forged Fittings

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	EN	OR
Hastelloy C276	2.4819	N10276	NW 0276	–	ХН65МВУ	NiMo16Cr15W	ЭП760
Hastelloy C22	2.4602	N06022	NW 6022	–	–	NiCr21Mo14W	–
Hastelloy B2	2.4617	N10665	–	–	–	–	–
Hastelloy C2000	2.4632	N06200	NW 6200	–	ХН60МБ	NiCr23Mo14Cu	–

Contact us to get a quick quote

If you require any further information about our Hastelloy High Pressure Forged Fittings or any other product, please do not hesitate to contact us.

Call Now

Mail Us

Hastelloy Socket Weld Fittings Weight Chart

Nominal Pipe Size (NPS)	Weight (lbs)	Weight (kg)
1/4	0.18	0.08
1/4	0.25	0.11
1/2	0.32	0.14
1/2	0.45	0.20
3/4	0.52	0.24
3/4	0.65	0.29
1	0.74	0.34
1	1.02	0.46
1-1/4	1.06	0.48
1-1/4	1.38	0.63
1-1/2	1.52	0.69
1-1/2	1.94	0.88
2	2.15	0.98
2	2.85	1.29
2-1/2	3.00	1.36
2-1/2	4.35	1.97
3	3.58	1.62
3	5.10	2.31

Hastelloy Forged Fittings Dimensions

Nominal Pipe Size (NPS)	Outside Diameter (OD) Tolerance (inches)	Wall Thickness Tolerance (inches)	Length Tolerance (inches)	Pipe SCH
1/4	±0.015	±0.010	±0.125	SCH 40
1/4	±0.020	±0.012	±0.125	SCH 80
1/2	±0.020	±0.012	±0.125	SCH 40
1/2	±0.025	±0.015	±0.125	SCH 80
3/4	±0.025	±0.015	±0.125	SCH 40
3/4	±0.030	±0.020	±0.125	SCH 80
1	±0.030	±0.020	±0.125	SCH 40
1	±0.035	±0.025	±0.125	SCH 80
1-1/4	±0.035	±0.025	±0.125	SCH 40
1-1/4	±0.040	±0.030	±0.125	SCH 80
1-1/2	±0.040	±0.030	±0.125	SCH 40
1-1/2	±0.045	±0.035	±0.125	SCH 80
2	±0.045	±0.035	±0.125	SCH 40
2	±0.050	±0.040	±0.125	SCH 80
2-1/2	±0.050	±0.040	±0.125	SCH 40
2-1/2	±0.060	±0.050	±0.125	SCH 80
3	±0.060	±0.050	±0.125	SCH 40
3	±0.070	±0.060	±0.125	SCH 80

Hastelloy Forged Fittings Tolerance Chart

Minimal Diam.		Outer Dia. For Bevel End	Inner Dia. For End	Elbow		Tee		Reducer	Cap	180°Elbow
DN	NPS			A	B	C	M	H	E	O	K	Roughness
500-600	20-24	+6.4/-4.8	4.8	3.2	3.2	3.2	3.2	4.8	9.6	–	–	–
650-750	26-30
				4.8	4.8	4.8	4.8
800-1200	32-48
1250-1500	50-60	+9.6/-6.4	6.4	9.6	9.6	9.6	9.6	9.6	–
1550-1750	62-70	+12.7/-9.6	9.6	12.7	12.7	–
1800-2000	72-80	+16/-12	12	16	16
15-65	1/2-2 1/2	+1.6/-0.8	0.8	1.6	1.6	1.6	1.6	1.6	3.2	6.4	6.4	0.8
80-100	3-4	1.6	1.6						6.4
125-200	5-8	+2.4/-1.6
250-450	10-18	+4/-3.2	3.2	2.4	2.4	2.4	2.4	2.4		9.6
